VELP, UDK 149 Automatic Kjeldahl Nitrogen Protein Analyzer
Prod #F30200145
Distillation Units
UDK Series
Unit Distilasi Seri UDK dirancang untuk memenuhi
permintaan dan persyaratan paling menantang untuk beragam aplikasi,
sesuai standar internasional: nitrogen Kjeldahl TKN,
protein, nitrogen amoniak, nitrogen nitrat (Devarda), fenol,
TVBN dan asam volatil, sianida, serta kadar alkohol.
Lima model UDK yang berbeda tersedia dengan berbagai tingkat otomatisasi
dan konektivitas cloud eksklusif untuk memenuhi setiap kebutuhan laboratorium
akan otomatisasi dan throughput.
Product Overview

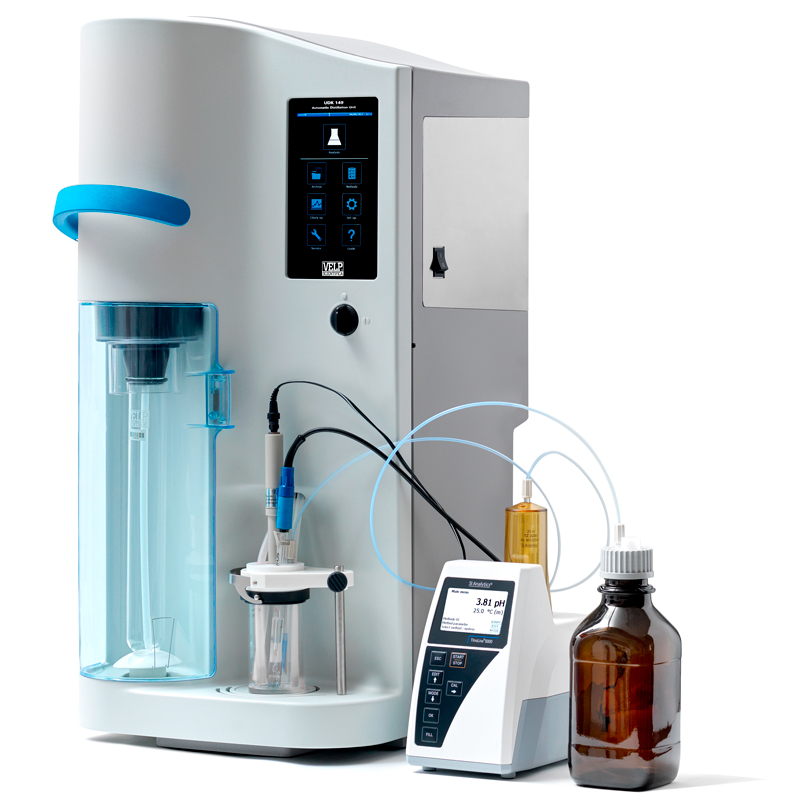

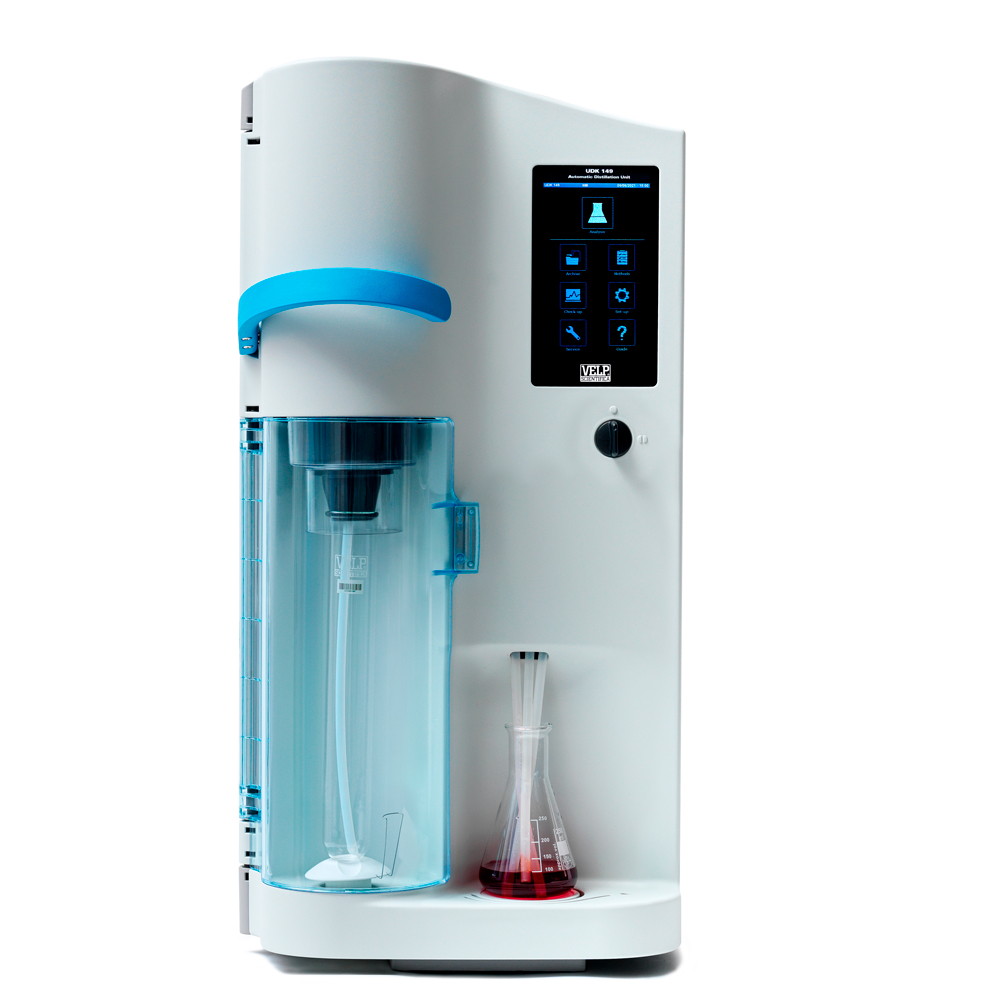

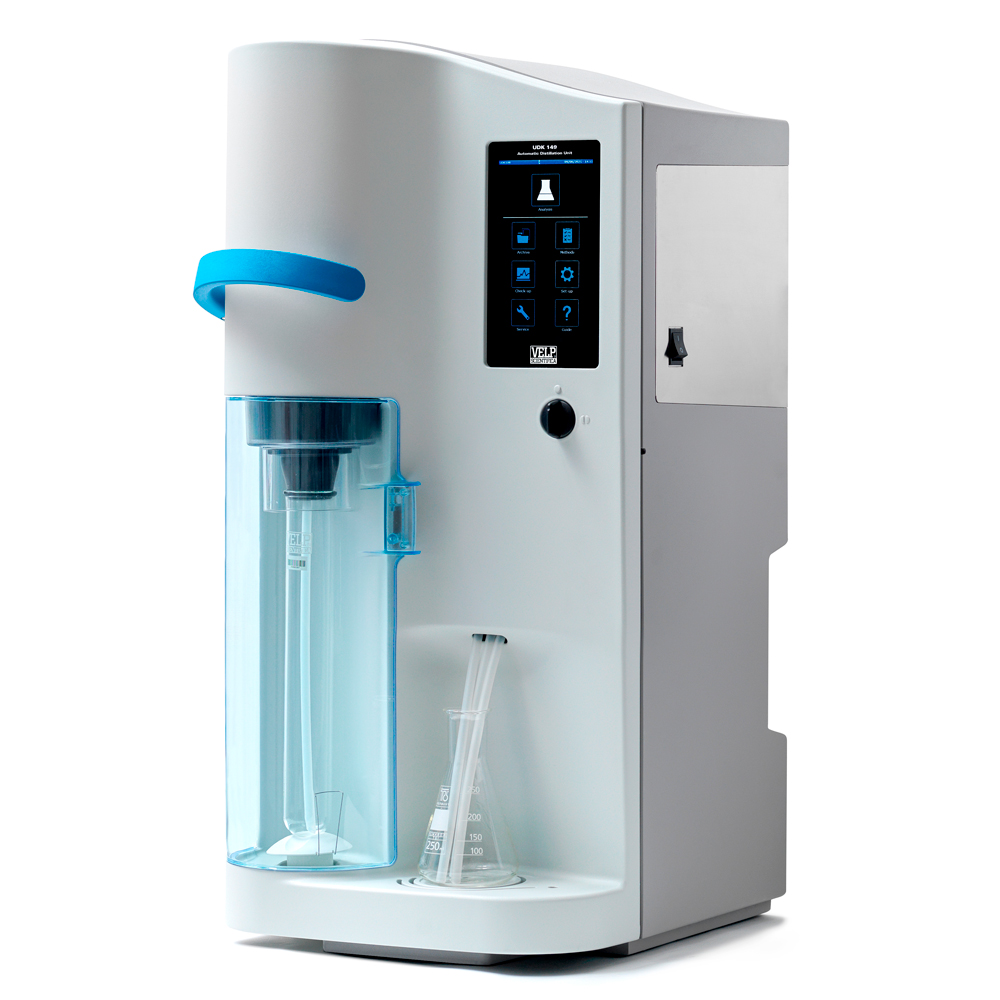

UDK 149 adalah unit distilasi VELP sepenuhnya otomatis dengan sambungan titrator potensiometri eksternal.
TECHNICAL DATA
| Structure | Corrosion-resistant technopolymer |
| Display | 7" color touch screen |
| Analysis time | 3 minutes for 100 ml of distillate |
| MEASURING RANGE | 0.04 - 220 mg N |
| Reproducibility (RSD) | ≤ 1 % |
| Recovery | ≥ 99.5 % |
| Detection Limit (LOD) | > 0.015 mg N |
| Sodium hydroxide addition | Automatic |
| Water addition | Automatic |
| Boric acid addition | Automatic |
| DISTILLATION RESIDUES REMOVAL | Automatic |
| TITRATION RESIDUES REMOVAL | Automatic |
| TITRATION VESSEL CLEANING | Automatic |
| SELECTABLE DISTILLATION TIME | Yes |
| STEAM FLOW REGULATION | 10 - 100 % |
| DELAY TIME (DEVARDA ALLOY ANALYSIS) | 00 sec - 99 min 59 sec |
| DISTILLATION IN SERIES | Yes |
| WATER CONSUMPTION | From 0,5 L / min to 15°C From 1 L / min to 30°C |
| LANGUAGE SELECTION | Yes |
| PROTOCOL LIBRARY | 20 customizable methods |
| USER MANAGEMENT | Yes |
| ARCHIVE (ON-BOARD DATA STORAGE) | Yes |
| CONNECTIVITY | 2 x USB (balance, barcode scanner, mouse, printer, pen drive); Ethernet (Pc, Ermes); RS232 (external titrator) |
| POWER INPUT | 2200 W |
| DIMENSIONS (WxHxD) | 385x780x416 mm 15.2x30.7x16.4 in |
| WEIGHT | 27 kg 59.5 lb |
| ERMES CONNECTION | Yes, via Wi-Fi or LAN |
Brosur bisa dilihat disini dan Comparison UDK table lihat disini
