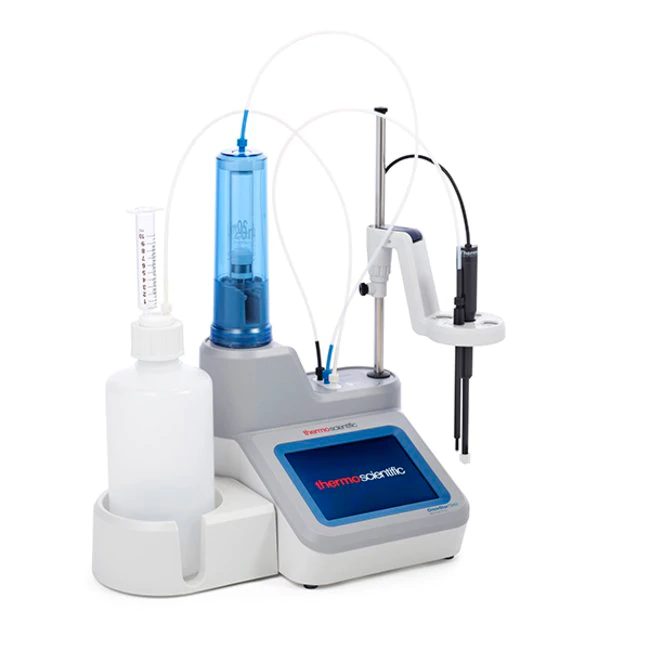

THERMO ORION SCIENTIFIC, Orion START9400 all-in-one titrator without electrode
Prod #START9400
Gunakan titrator all-in-one Orion Star T940 untuk titrasi konsentrasi ion, redoks, dan pH yang fleksibel termasuk titrasi titik ekivalen, titrasi titik akhir pH atau mV yang telah ditetapkan ditambah mode beberapa penambahan yang diketahui (MKA) untuk penambahan berbagai ion yang diketahui secara otomatis.
Product Overview
| Calibration Points (ISE) | 1 to 5 |
|---|---|
| Calibration Points (pH) | 1 to 5 |
| Data Points | 100 data sets each: sample titration, titrant standardization, calibration and direct measure |
| For Use With (Application) | Acid-base titrations, redox titrations, ion concentration titrations |
| IP Rating | IP-51 |
| Languages | Chinese, English, French, German, Italian, Japanese, Korean, Portuguese and Spanish |
| Material | ABS Plastic |
| Model | Orion Star T940 |
| Range (ISE) | 0.0001 to 19990 |
| Range (mV) | -2000.0 to +2000.0 mV |
| Range (pH) | -2 to 20 |
| Resolution (ISE) | 0.0001 minimum, 1 to 4 significant digits (user selectable) |
| Resolution (pH) | 0.001, 0.01, 0.1 (user selectable) |
| Temperature Range (Metric) | -5.0°C to +100.0°C |
| Burette Functions | Automatic rinse cycles for flushing and discrete dispense volume with continuous option; Exceeds acc |
| Display Type | 5.7” color capacitive touchscreen, 640 x 480 resolution |
| Functions Available | Sample titration, titrant standardization, calibration and direct measure |
| Type | Acid/base, redox and ion titrator |
| Description | Orion Star T940 all-in-one titrator without electrode |
| Includes | 20 mL burette, stirrer probe, dispenser probe, standard tubing kit, 1 L plastic bottle, GL38 bottle cap with two ports and drying tube, computer cable, USB drive, 110-240 V power supplies |
| Advanced ISE Functions | Multiple known addition (MKA); automated calibration and calculation of sample concentration by adding aliquots of standard to sample using the burette |
| Titration Technique | Equivalence point or preset endpoint |
| Equivalence Points | 1 to 2 |
| Preset Endpoints | 1 to 3 |
| Titration Types | Direct or back titration |
| Blank Options | Fixed value or variable value using titration |
| Cycles Per Titration Run | 1 to 5 cycles, option to exclude cycle results from average results and RSD calculations |
| Titrant Determination | Standardization titration or manual concentration input |
| Titration Process Control | Routine, quick, careful or user defined |
| Precision | 0.5% RSD, dependent on environment and handling conditions |
| Titration Setup Wizard | Yes, using Start a New Titration workflow |
| Burette Sizes | 10 mL, 20 mL (included) or 50 mL |
| Resolution | Burette drive offers advanced micro-step technology that provides 25,600 micro-steps per motor revolution for smooth and precise burette positioning (over 2 million micro-steps over the full burette stroke range) |
| Stirrer Probe Speeds | 5 user selectable speeds (250 to 3700 RPM) |
| Methods | Up to 10 methods with optional password protection; import/export methods via USB flash drive |
| Data Management Details | Data log export as CSV or PDF file, short or long format |
| Sample ID | Auto-incremental, manual or off |
| Time and Date | Yes, with nonvolatile battery backup |
| Memory | Non-volatile memory preserves data logs and settings |
| Updateable Firmware | Yes, using USB flash drive |
| Alarm Output | Notifications for Titration Cycle Complete, Maximum Titrant Volume, Data Log Full, Calibration Due, Maintenance Reminder |
| Accuracy (pH) | ±0.002pH |
| Accuracy (ISE) | ±0.2 mV or ±0.05% of reading, whichever is greater |
| Resolution (mV) | 0.1 mV |
| Accuracy (mV) | ±0.2 mV |
| Resolution (Temperature) | 0.1 °C |
| Accuracy (Temperature) | ±0.2 °C |
| Calibration | pH, mV, ion concentration (ISE) and temperature |
| Calibration Points | 1 point relative mV (RmV) mode |
| Temperature Probe Calibration | Optional 1 point offset calibration |
| Temperature Selection | Manual or automatic |
| Backlight Option | Yes, adjustable |
| Channels | 1 |
| Probe Type | pH electrode, redox electrode or ion selective electrode (ISE); reference half-cell electrode; ATC temperature probe; stirrer probe |
| Inputs | BNC (pH, redox or ion selective electrode), pin-tip (reference electrode), 8 pin MiniDIN (ATC temperature probe), stirrer input (stirrer probe) |
| Outputs | 3 USB ports for printer, USB flash drive and computer software connections |
| Certifications/Compliance | CE, TUV 3-in-1, FCC, EN/EIC61326-1, IEC 61010 |
| Electrical Requirements | 100-240V, 50/60 Hz |
| Dimensions (L x W x H) | 10” x 16” x 14”; 25.4 cm x 40.6 cm x 35.6 cm |
| Temperature (English) Operating | 41°F to 104°F |
| Temperature (Metric) Operating | 5°C to 40°C |
| Relative Humidity Range | 5 to 85%, non-condensing |
| Warranty | 1 year replacement warranty |
| Unit Size | Each |
