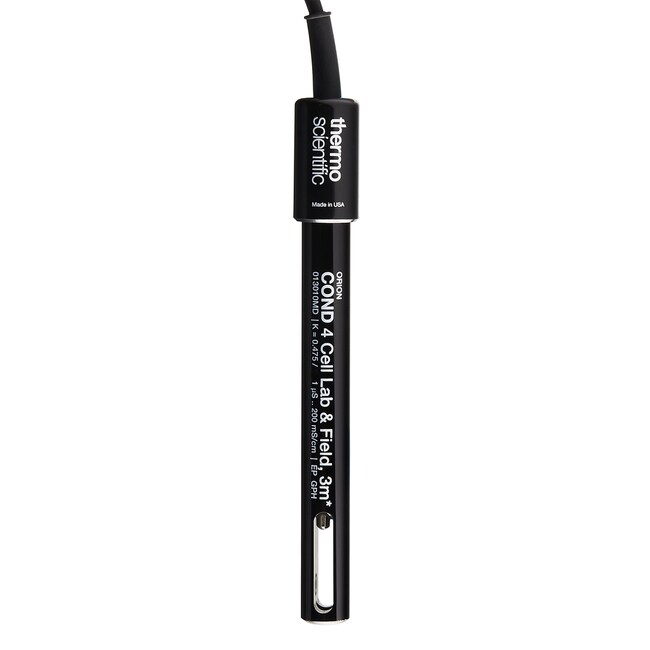

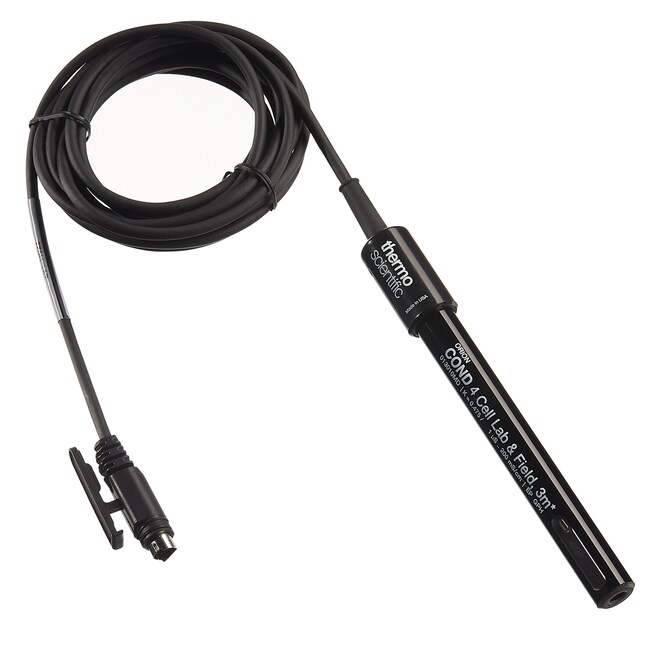

THERMO ORION SCIENTIFIC, 013010MD ORION CONDUCTIVITY 4CELL MINIDIN, 3M
Prod #013010MD
Rentang pengukuran : 1 µS/cm to 200 mS/cm
Aplikasi
• Penggunaan lingkungan, termasuk analisis air limbah,
air limpasan, danau, sungai, dan muara
• Analisis air minum
• Pengujian salinitas
• Kontrol mutu makanan dan minuman serta pembersihan di tempat
• Akuakultur
• Analisis bahan baku farmasi dan
perantara, kontrol mutu
Product Overview
| ype | 4-Electrode Conductivity Cell, Waterproof 8-Din Connector |
|---|---|
| Connector Types | 8-pin Mini-DIN |
| Description | Conductivity/temperature probe, 4-cell, K=0.475cm-1, measures 1μS to 200 mS, 3 meter cable |
| Diameter (English) Body | 0.59 in. |
| Diameter (Metric) Body | 15mm |
| For Use With | Star A112, Star A122, Star A212, Star A215, Star A222, Star A322, Star A325, Star A329, Versa Star and Versa Star Pro Conductivity Meters |
| Length (English) Cable | 10 ft. |
| Length (Metric) Cable | 3m |
| Material | Rugged epoxy body |
| Min. Immersion | 35mm |
| Sensor Types | 4 electrode graphite cell |
| Storage Method | Store in distilled or deionized water between measurements; for overnight or long-term storage, thoroughly rinse and store dry |
| Probe | Conductivity probe with built-in ATC temperature sensor |
