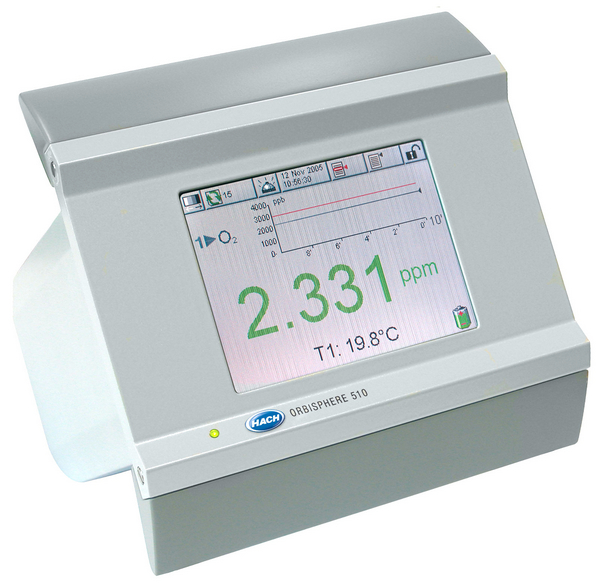

ORBISPHERE, Hach Orbisphere 510 Dual-Channel Controller for K1100 O₂ (LDO), Wall Mount, 100 - 240 V AC

Prod #510KK0/W1C00000
Live Chat Request Quote

Orbisphere 510 multi-channel controller menawarkan kemampuan pemantauan proses yang tepat dan kuat. Dirancang untuk melengkapi sensor kualitas tinggi Orbisphere, instrumen ini memberikan pengukuran yang akurat dan dapat diulang serta tingkat manajemen data yang mengesankan. Tergantung pada versinya, pengontrol Orbisphere 510 dapat dikombinasikan dengan hingga 3 sensor di antara:

• Orbisphere 311xx Oxygen Sensors

• Orbisphere A1100 Oxygen Sensors

• Orbisphere K1100 Oxygen Sensors

• Orbisphere M1100 Oxygen Sensors

• Orbisphere 314xx Carbon Dioxyde Sensors

• Orbisphere C1100 Ozone Sensors

• Orbisphere 312xx Hydrogen Sensors

• Orbisphere 315xx Nitrogen Sensors

Kontroler ini dirancang untuk aplikasi dalam pembangkit listrik, elektronik, ilmu kehidupan, industri minuman, kimia dan industri pengolahan air.

Product Overview

What's in the box :

510 controller and manual only.
Sensors and cables, flow-chamber or process connection, must be ordered separately.



Specifications :

Analog Outputs :

3 smar t 0/4-20 mA (500 ohms), programmable as linear or tri-liniear, configurable to send diagnostics information
Communication Capabilities : 3 x 0/4-20 mA; RS485; Ethernet
Compatible Instruments :
Channel1: K1100
Channel 2: K1100
Compliance Certifications :
EMC: EN61326-1:2006
CE: EN61010-1:2010
ETL, conforming to UL 61010-1 and CSA 22.2 No. 61010-1
Data Storage :
Rolling buffer or store once mode for up to 10,000 measurements and 1000 operator actions
Holds calibration records for last 50 calibrations
Display : Colour TFT touch-screen display
Electrode Compatibility :
Channel1: K1100
Channel 2: K1100
Enclosure Construction : Wall mount
Measurements : Resolution, accuracy and response time are determined by sensor
Operating Conditions : 0 - 95 % non-condensing relative humidity
Operating Temperature Range : -5 - 45 °C
Password Protection : 5 levels of authorised access to configuration and data management
Power : Universal 100/240 VAC @ 50/60 Hz, 25 VA
Power Requirements (Voltage) : 100 - 240 VAC
Relays :
3 measurement alarm relays (2A to 30 VAC or 0.5 A to 50 VDC); configurable to send diagnostics information
1 system alarm relay (2 A to 30 VAC or 0.5 A to 50 VDC)
Units :
Gas concentration: Configurable for gas or liquid phase with multiple unit options
Pressure: External and barometric pressure with multiple unit options
Temperature: Sample temperature with unit options (K, °C, °F)
User Interface :
Touch-screen panel displays: concentration, trend graph, diagnostics, alarm status, historical data
Weight : 3.8 kg
