OPTIKA, METALLURGICAL MICROSCOPE, IM-300METLD
OPTIKA is pleased to present the brand new range of IM-300 inverted microscopes.
These models, completely redesigned, offer exceptional working comfort and routine use of the highest level.
Inverted microscopes are useful for observing living cells or organisms at the bottom of a large container (for example, a tissue culture flask) under more natural conditions than on a glass slide, as is the case with a conventional microscope.
The IM-300 series includes a version for the simultaneous brightfield and phase contrast method, designed and engineered to be the ideal solution for fast and reliable routine inspections.
The glass stage surface allows for optimal visual access to the objective turret.
A particularly simple and ingenious optical design enables stable alignments and smooth, precise movements.
The IM-300 range is completed with digital versions equipped with a large 4k touch screen monitor and a very high sensitivity camera.
Product Overview
METALLURGICAL MICROSCOPE

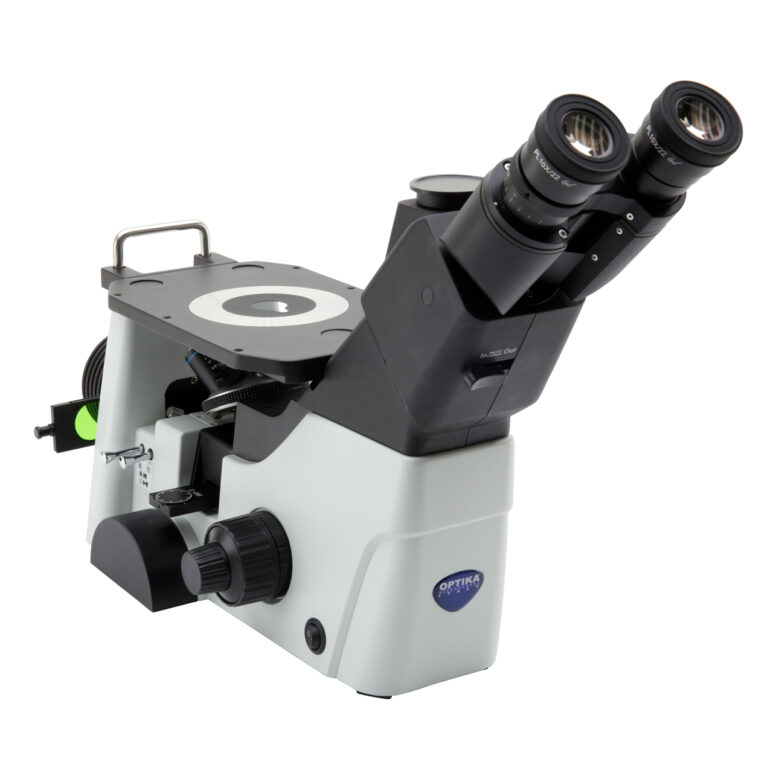

Model: IM-300METLD
Routine inverted LED microscope with IOS LWD U-PLAN MET objectives for material science and metallographic applications, combining a sturdy yet compact structure with dedicated components required in this field, like the NCG (no cover glass) objectives working without cover slide ideal for metallographic samples and other opaque specimens. A particularly simple and ingenious optical design allows stable alignments and smooth and accurate movements.
SPESIFIKASI :
Observation mode: Brightfield, simple polarized light on incident light.
Epi-illumination and polarizing filters: LED 12 V/50 W with brightness control. With aperture and field (centrable) diaphragms. With polarizer and analyzer.
Head: Trinocular (2-position 100/0, 50/50), 45° inclined.
Interpupillary distance: Adjustable between 50 and 75 mm.
Dioptric adjustment: On the left eyepiece tube.
Eyepieces: WF10x/22 mm, high eye-point and with rubber cups.
Nosepiece: Quintuple revolving nosepiece, rotation on ball bearings.
Objectives:
IOS LWD U-PLAN MET 5x/0.15
IOS LWD U-PLAN MET 10x/0.30
IOS LWD U-PLAN MET 20x/0.45
IOS LWD U-PLAN MET 50x/0.75
All with anti-fungus treatment.
Specimen stage: Fixed stage, 250×160 mm, with metal stage insert.
Focusing: Coaxial coarse (adjustable tension) and fine focusing mechanism with limit stop to prevent the contact between objective and specimen.
