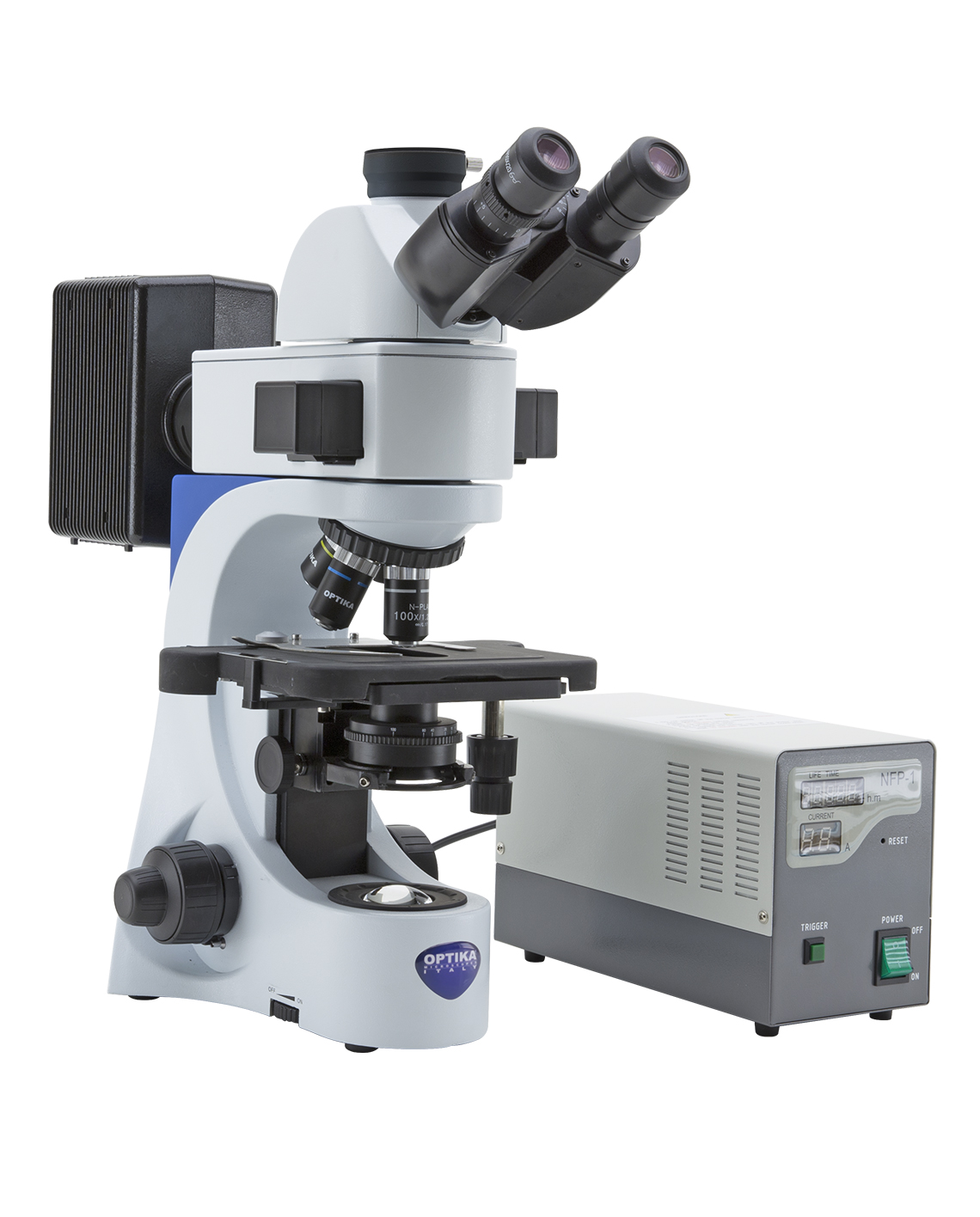

OPTIKA, B-383FL - HBO Fluorescence Microscope
Trinocular HBO fluorescence microscope,
1000x, IOS N-PLAN objectives, Blue &
Green filtersets
Mikroskop tegak laboratorium untuk pengamatan medan terang dan fluoresensi dengan lensa objektif IOS N-PLAN.
Iluminator fluoresensi HBO memberikan fleksibilitas penggunaan yang luar biasa, dengan set filter biru dan hijau (disediakan sebagai standar) untuk Auramine, FITC, GFP dan YFP (dengan set filter biru) ditambah Rhodamine, Texas Red dan TRITC (dengan set filter hijau), namun tetap memberikan kemungkinan untuk menggabungkan set filter spesifik lainnya untuk peningkatan di masa mendatang. Cahaya yang ditransmisikan melalui X-LED3 eksklusif untuk memastikan tampilan spesimen yang tampak hebat, kaya, dan berkualitas tinggi.
Product Overview
Trinocular HBO fluorescence microscope,
1000x, IOS N-PLAN objectives, Blue &
Green filtersets
SPESIFIKASI :
Observation mode: Brightfield, HBO fluorescence.
Epi-illumination and filters: HBO 100 W high pressure mercury lamp. 3-position filter holder; blue and green included.
Head: Trinocular (fixed 50/50), 30° inclined, 360° rotating.
Interpupillary distance: Adjustable between 48 and 75 mm.
Dioptric adjustment: On the left eyepiece tube.
Eyepieces: WF10x/20 mm, high eye-point and secured by screw.
Nosepiece: Quintuple revolving nosepiece, rotation on ball bearings.
Objectives:
IOS N-PLAN 4x/0.10
IOS N-PLAN 10x/0.25
IOS N-PLAN 20x/0.40
IOS N-PLAN 40x/0.65
IOS N-PLAN 100x/1.25 (Oil/Water)
All with anti-fungus treatment.
Specimen stage: Double layer rackless mechanical stage, 233×147 mm, 78×54 mm X-Y range.
Focusing: Coaxial coarse (adjustable tension) and fine focusing mechanism with limit stop to prevent the contact between objective and specimen.
Condenser: Abbe N.A. 1.25, with objective-coded iris diaphragm, focusable and centerable.
Transmitted illumination (Fixed Koehler type): X-LED3 with white 3.6 W LED (6,300K) with brightness control. Multi-plug 100-240Vac/6Vdc external power supply.
PRODUCT DATASHEET klik disini
