MEMMERT, Universal Oven
Prod #UN30Pa
The universally applicable oven is our classic appliance for temperature control in science, research and material tests in industry. The technologically perfected masterpiece made of high-quality, hygienic, easy-to-clean stainless steel leaves nothing to be desired in terms of ventilation and control technology, overtemperature protection and precisely tuned heating technology.
Product Overview
- Temperature range up to +300 °C
- 9 model sizes (32 to 1060 litres volume)
- 2 model variants: SingleDISPLAY and TwinDISPLAY
- Natural convection or forced air circulation N/F
Control of standard components
- ControlCOCKPIT : adaptive multifunctional digital PID-microprocessor controller with high-definition TFT-colour display
- Temperature : 1 Pt100 sensor DIN class A in 4-wire-circuit
- Timer : Digital backwards counter with target time setting, adjustable from 1 minute to 99 days
Temperature
- Set temperature : 5°C di atas suhu kamar sampai dengan +300°C
- resolution of display for setpoint values 0.1°C up to 99.9°C, 0.5°C from 100°C and for actual values 0.1°C (LED)
Standard equipment
- Door : fully insulated stainless steel door with 2-point locking (compression door lock)
- Internals : 1 stainless steel grid
- Interior : easy-to-clean interior,made of stainless steel,reinforced by deep drawn ribbing with integrated and protected large-area heating on four sides
Stainless steel interior

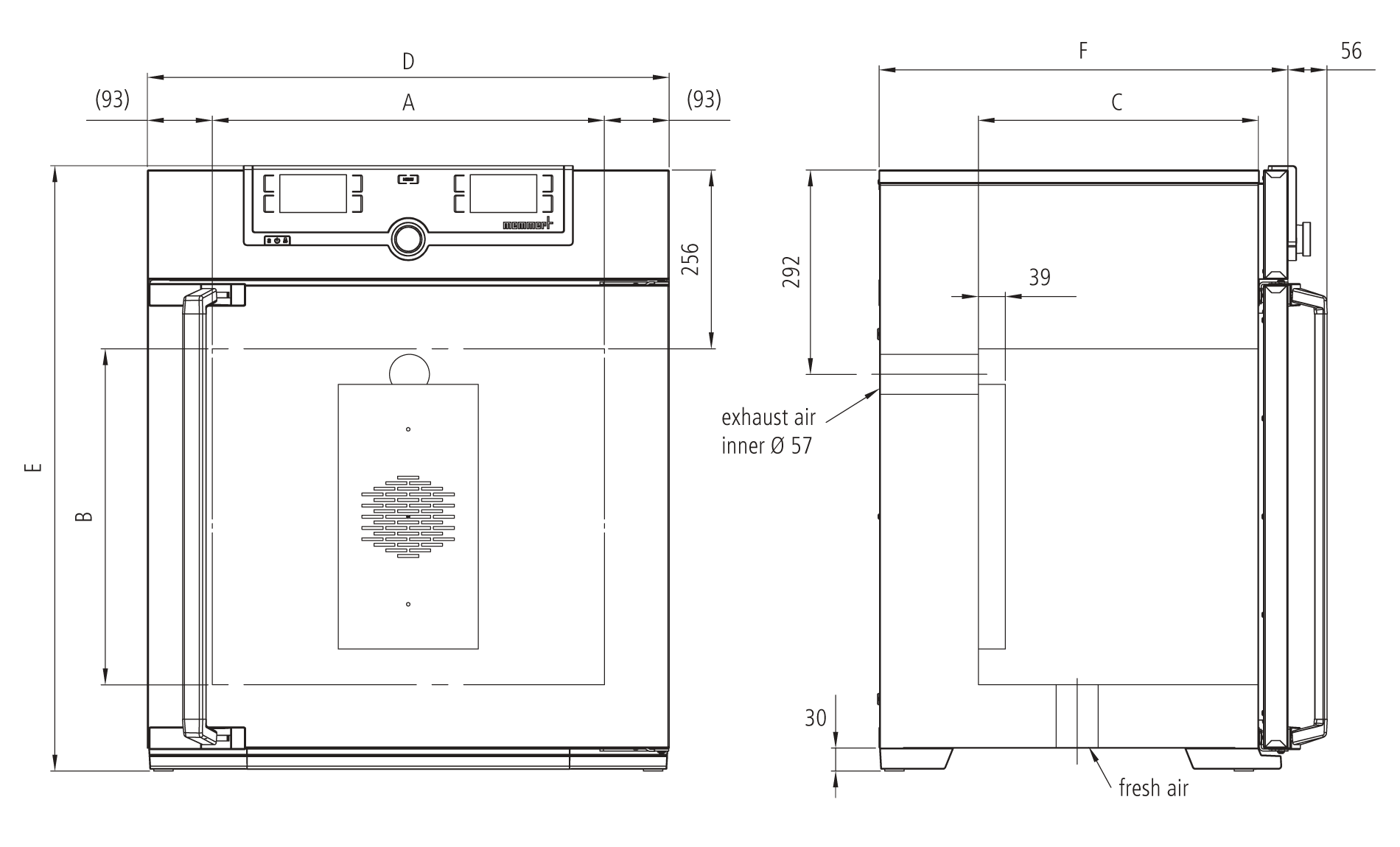

- w(A) x h(B) x d(C): 400 x 320 x 250 mm
- Volume 32l
- Max. loading of chamber: 60 kg
Textured stainless steel casing
w(D) x h(E) x d(F): 585 x 704 x 434 mm
Electrical data
- 230 V, 50/60 Hz / approx. 1600 W
- 115 V, 50/60 Hz / approx. 1600 W
Packing/shipping data
- Dimensions approx incl. carton B x H x T: 660 x 890 x 650 mm
- Net weight approx. 45 kg
- Gross weight carton approx. 61 kg
