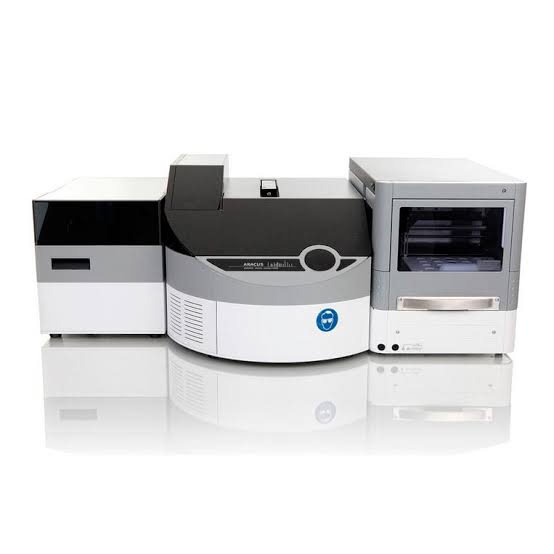

MEMBRAPURE, Amino Analyser Aracus
Prod #MEMBRAPURE Aracus
ARACUS merupakan alat untuk menganalisis kandungan asam amino pada sampel yang mampu melalukan proses pemisahan 44 asam amino dalam waktu 66 menit. ARACUS beroperasi 55% lebih cepat dibandingkan alat pada umumnya. ARACUS dapat digunakan dalam laboratorium klinis, dalam kontrol kualitas pada makanan, minuman, bahan pakan, dan penelitian.
Product Overview
Aracus - Amino Acid Analyzer
| Method | Post Column Derivatization | |
| Autosampler | 2 racks, each of them with space for 48 vial, sample cooling dosage in 3 different injection modes: Full loop (100 μL), partial loop (5-50 μL), microliter pickup (1-35 μL) | |
| Column | stainless steel, cation exchange resin Reproducibility of retention time <0.3% RSD Reproducibility of peak area 1% RSD | |
| Column Oven | 20 – 80 oC, accuracy 0.1% | |
| Reactor Temperature | 20 – 140 oC | |
| Spectroscopic Detection | LED photometer (440 nm + 570 nm), 8 years warranty Measuring range: high, low Flow Cell: 10 μL volume, 3 years warranty | |
| Detection limit | < 2 nmol/mL | |
| Quantification limit | < 5 nmol/mL (with OPA method < 0.5 nmol/mL) | |
| Pump System | single pump (ARACUS), dual pump (ARACUS advanced) Max. pressure: 400 bar, flow rate: 0.01 – 10.00 mL/min Reproducibility of low rate: 0.1 % RSD at 100 μL/min | |
| Max. Operating Pressure | 120 bar | |
| Ready to use kits | kits including eluents, reagent and additional dilution buffer, Ammonia adsorber and separation columns for 500 – 1000 runs | |
| Control software & Data acquisition | Clarity (21 CFR Part 11 compliant) or AminoPeak | |
| Dimension, weight, power | 1080x370x690 mm, 60 kg, 110 – 230 V | |
