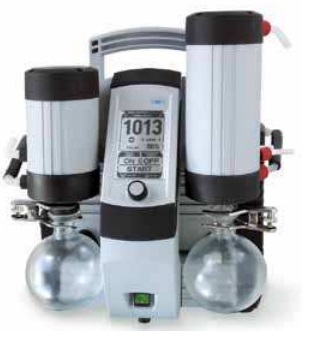

Product Overview
Technical features
- Remote-controlled for safe operation from outside closed fume hoods
- Automatic, accurate recognition and monitoring of the boiling point using the integrated ramp function
- High recovery rates even with low boiling point solvents ñ Integrated gas ballast valve
- Speed-controlled ñ Quiet operation ñ Optimized suction capacity
- PPS pump head combined with PTFE-coated diaphragm are ideal for aggressive/corrosive gases and vapors
ELECTRICAL PARAMETERS
- Flow rate [m³/h] at atm. pressure 1.26
- Flow rate [l/min] at atm. pressure 21
- Ultimate vacuum [mbar abs.] max. 2 and max. 5 with gas ballast valve in use
- Nominal voltage [V] 100 - 240
- Frequency [Hz] 50 - 60
- Power consumption [W] max. 135
- Operating current [A] max. 1.7 With overcurrent protection and mains fuse
