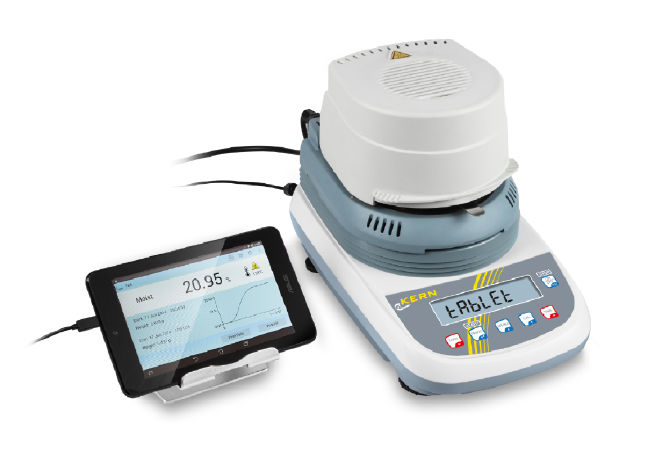

KERN , Moisture Analyzer DLT 100-3N

Prod #DLT 100-3N

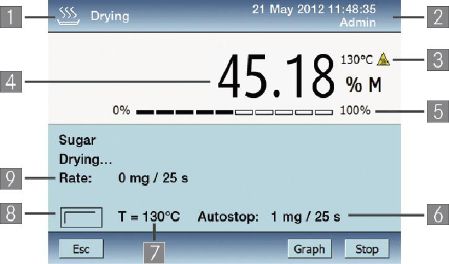

KERN DLT Moisture Analyser. Innovative touchscreen: Large touch-sensitive, backlit screen with very good contrast for easy operation and convenient reading.Colour LCD Display, digit height 17 mm, screen diagonal 5.8\\\'\\\' (approx. 147 mm), WxH 118 x 88 mm Drying process active Status bar Current temperature Current moisture content in % / Display and print-out of moisture-% Residual weight in % (progress bar) Switch off mode Target temperature Type of drying Standard Drying rate Particularly in the pharmaceutical, food, chemical and construction industries, being able to analyse the moisture content of materials at Goods Inwards and production is an important tool to ensure product quality and robust production processes. In biogas plants, sewage treatment plants or landfill sites, the drying of biomass has always been extremely important. Controlling the moisture content precisely helps, for example, to reduce transport weights or increase heating values In the timber industry, statements which can be validated relating to the moisture content and the resulting mechanical and technological characteristics of the wood or the fuel and heating values of wood chips, pellets, etc. are of economic importance Grafic display of the drying curve shows the progress of the drying process in real time and can be used by the operator to check and evaluate the result Balance contains memories for automatic sequence of 300 drying programs (12 free characters for each memory) as well as a further 100 memories for drying processes which have been carried out, which can be recalled individually Touchless tare function: just give it a wave. 2 freely-assignable movement sensors for TARE and/or PRINT Practical net weighing assistance to a defined target value [g] with adjustable tolerance range 1 - 25 % of the target value

Product Overview



  • Colour LCD Display, digit height mm, screen diagonal 7'' (approx. 178 mm), all information at a glance:
    • Drying process active
    • Status information, available for display
    • Current moisture content in %
    • Current temperature
    • Android®-specific navigation elements
    • Drying rate
    • Switch off mode
    • Drying type Standard
    • Target temperature
    • Current display and print-out of moisture-%
    • Graphic display of the drying curve shows the progress of the drying process in real time and can be used by the operator to check and evaluate the result
  • Practical weighing assistance to arrive at a defined target value [g] with an adjustable tolerance range of 1 – 25 % of the target value
  • Memory for automatic run of 300 complete drying processes (12 free digits per memory) and 100 drying processes already executed, which can be called up individually



STANDARD   OPTION
Adjusting program (CAL): For quick setting of the balance's accuracy. External adjusting weight required.
Memory: Balance contains memories, e.g. for  tare weights, weighing data, item data,  PLU etc.
Data interface RS-232: To connect the balance to a printer, PC or network
Bluetooth data interface: To transfer data from the balance to a printer, PC or other peripherals.
WLAN data interface: To transfer data from the balance to a printer, PC or other peripherals.
GLP/ISO log: with weight, date and time. Only with KERN printers, see Accessories
Weighing units: Can be switched to e.g. nonmetric units at the touch of a key. See balance model.
Mains part: mains part integrated in the balance. 230V/50Hz Standard type D, if requested also available in standard GB, AUS or USA.
Mains adapter: 230V/50Hz in standard version for Germany. On request GB or USA version.
Strain gauge: An electrical resistor strip that is glued to an elastic deforming body made of aluminium. As the strain gauge is mechanically deformed its resistance value changes, allowing
Parcel shipment via courier.
Ready for dispatch in 1 day
3 years warranty
DAkkS calibration possible. The time required for DAkkS calibration is specified in the pictogram.
