JULABO, ME-18V Visco Bath

Prod #ME-18V

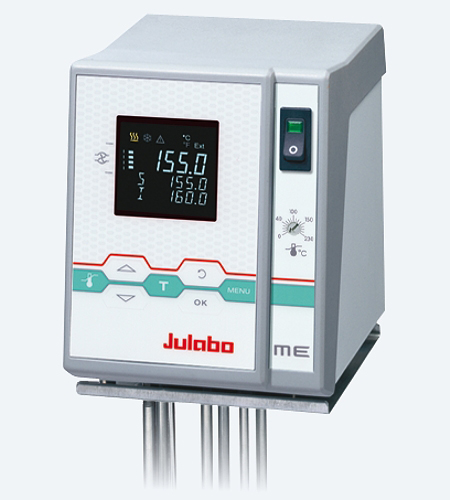

Julabo in Indonesia distributed by PT. SAKA - ME-18V Visco Bath – JULABO Visco Baths are used for precise temperature applications with capillary viscometers and density meters within the bath tank. The units offer high temperature accuracy and optimal temperature distribution throughout the bath. An integral cooling coil for cooling water is provided for temperature applications below or near ambient temperatures. The units are equipped with a holder for thermometers and therefore offer very good options for temperature calibration procedures and comparisons with accredited thermometers. Your advantages : 1. VFD COMFORT DISPLAY 2. Keypad for setpoints, warning/safety values and menu functions 3. PID3 cascade temperature control 4. ATC3 3-Point-Calibration 5. Pt100 External sensor connection for measurement and control 6. SMART PUMP, electronically adjustable pump stages 7. Early warning system for low liquid level (DBGM 203 06 059.8) 8. Adjustable high temperature cut-out, visible via display 9. RS232 interface for online communication 10. Integrated programmer for 10 program steps 11. Instruments can be used according to ASTM standard D445

Product Overview

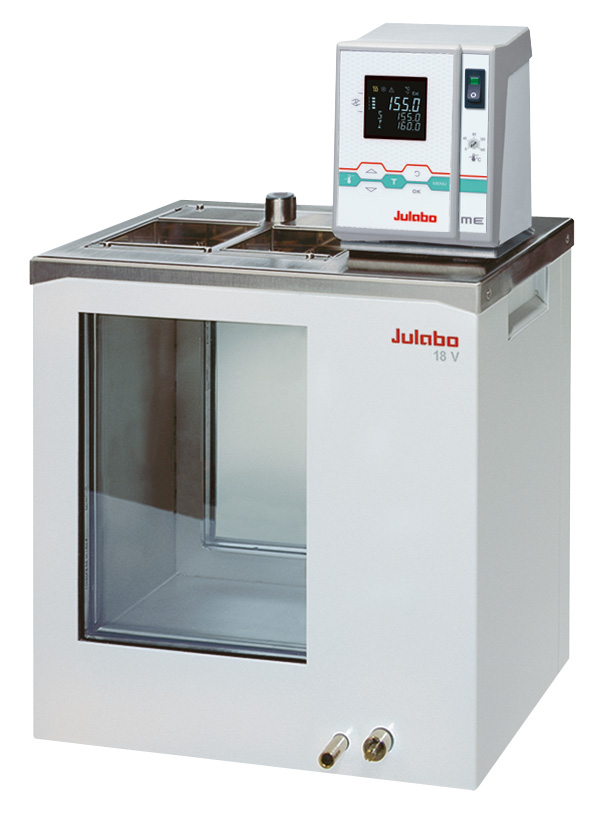

ME-18V Visco Bath

Visco Bath for internal temperature applications

Digunakan dalam pengukuran dengan viscometer kapiler atau dengan alat densimeter dan produk sejenisnya. Acuan standard ASTM D445

SPESIFIKASI :

Bath tank terbuat dari stainless steel denganinsulated bath mantle dan dua jendela terbuat dari multiple-layer insulated glass kualitas tinggi.

Working temperature : +20 ... +150oC

Heating Capacity        : 2 kW

Pump cap. flowrate / pressure : 11-16 L/min, 0.23-0.45 bar

Filling volume              : 18 liter



ME-18V sudah tidak diproduksi
