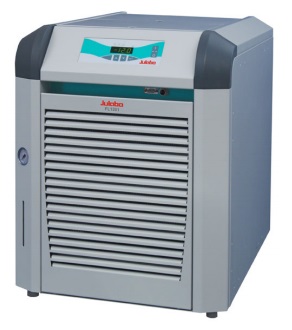

Product Overview
Your advantages
- Ergonomic design and easy operation
- Splash-proof keypad with integrated mains switch
- Large, bright LED display
- Reliable Microprocessor PID temperature control
- Filling level indicator
- Powerful immersion pumps, suitable for continuous operation
- Permissible temperature in return line +80°C
- Easy filling from the top with hinged protective lid
- Low liquid level protection with optical and audible alarm signal
- Integrated stainless steel bath tanks
- Removable venting grid for cleaning of the condenser
- Front drain
- No side vents
- RS232 interface for PC-connection
- IP class according to IEC 60529: 21
- Alarm output, potential-free change-over contact (max. 30 VA)
- Pressure Indicator
Technical data
- Model series FL Series
- Category Recirculating Coolers
- Working temperature range (°C) -20 ... +40
- Temperature stability (°C) ±0.5
- Setting / display resolution 0.1 °C
- Temperature Display LED Cooling capacity (Medium Ethanol) °C 20 10 0 -10 -20 kW 1.2 1 0.9 0.6 0.3
- Pump capacity flow rate (l/min) 23
- Pump capacity flow pressure (bar) 1.0
