HIRAYAMA, HV50 HICLAVE WITH 3PCS SS WIRE BASKETS
Prod #HV50
Portable, Top-Loading Autolaves with Advanced Safety and User-Friendly Features
The Most Advanced Autoclaves with Unique Features :
*Electromechanical lock system
*Dual-sensing interlock mechanism
*Double-sensing system for air evacuation
*Programmable auto start
*Process status display
*Process mode for agar
Product Overview

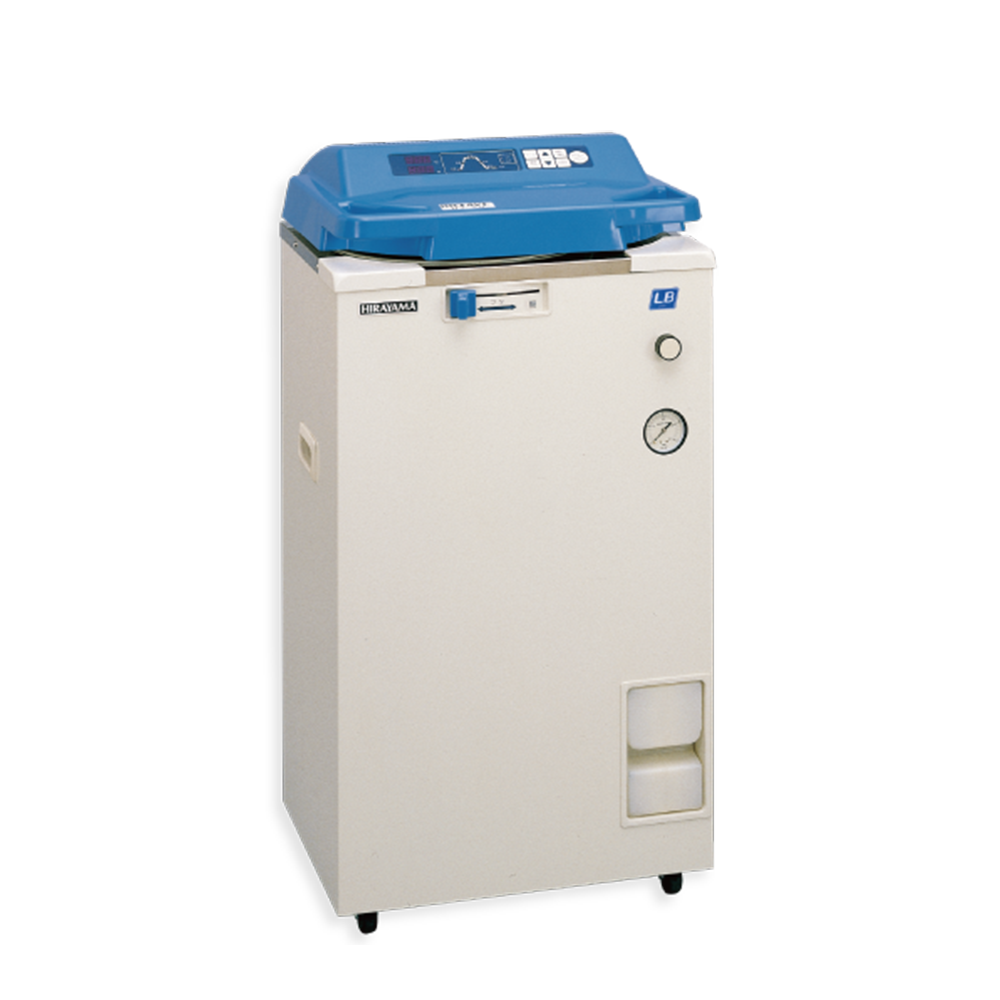

Hirayama HV-50, 50 Liter Upright Autoclave
Desain hemat-ruang dengan tutup terbuka ke atas.
Mulai otomatis yang dapat diprogram untuk memulai siklus hingga 1 minggu kemudian.
Interlock tutup pengindraan ganda mencegah pembukaan tutup saat ruang bertekanan atau ketika suhu melebihi 97 ° C.
Pembersihan udara otomatis oleh mikroprosesor mencegah tekanan berlebih selama siklus.
Tuas sekali sentuh untuk membuka dan menutup tutup ruang dengan mudah.
Laju pembuangan uap yang dapat diprogram.
Sensor penutupan pintu memberikan prompt dan siklus tidak akan dimulai kecuali pintu ditutup dengan benar.
Tampilan dalam proses menunjukkan status dan perkembangan siklus sterilisasi.
Mode sterilisasi agar untuk mensterilkan agar dan kemudian secara otomatis mempertahankannya pada suhu cair.
Aksesori unik: Sensor mengambang untuk memantau suhu beban.
Timer sterilisasi diaktifkan hanya ketika suhu beban mencapai suhu yang disetel.
Mode peleburan agar-agar dengan cepat agar-agar dan mempertahankannya pada suhu cair, atau untuk start-up yang panas dan lebih cepat
Sistem cadangan memori mempertahankan parameter yang diprogram pengguna bahkan jika listrik padam.
Specifications
|
HV-50
|
|
|
| TEMPERATURE | ||
| Operating Range |
105ºC to 135ºC
|
|
| Display Range |
137ºC
|
|
| Warming Range |
45ºC to 60ºC
|
|
| Agar Dissolution |
Heating at 60ºC to 100ºC for up to 1 hour (temperature and time programmable), followed by 45ºC to 60ºC
(programmable for up to 20 hours to prevent coagulation) |
|
| GAUGE PRESSURE | ||
| Operating Range |
3 to 30 psi (0.02 to 0.206MPa)
|
|
| Maximum Allowable |
38 psi (0.26MPa)
|
|
| TIMER | ||
| Sterilization |
1 to 250 minutes
|
|
| Delayed Auto-start |
Program autoclave to start 1 minute to 7 days later
|
|
| DIMENSIONS | ||
| Overall (W x D x H) |
20" x 21" x 41"
(51 cm x 53 cm x 104 cm) |
|
| Chamber (Diameter x Height) |
50 liters
11.8" x 28.0" (30 cm x 71 cm) |
|
| SAFETY DEVICES |
Dual-sensing lid interlock, over-pressure power cutoff, over-temperature power cutoff, low-water power cutoff, mechanical pressure relief valve, microprocessor-controlled pressure relief valve, lid-closure detector, over-current detector and circuit breaker
|
|
| PROGRAMS | ||
| 1. For agar |
Heating -> Sterilization -> Exhaust (from no exhaust to slow, programmable) -> Warming -> Completion
|
|
| 2. For liquids |
Heating -> Sterilization -> Exhaust (from no exhaust to slow, programmable) -> Completion
|
|
| 3. For solids |
Heating -> Sterilization -> Exhaust (fast, default) -> Completion
|
|
| 4. For melting agar or for faster start-up |
Rapid melting at 60°C to 100°C (temperature and time programmable) -> Maintain at 45°C to 60°C (temperature programmable) -> Completion
|
|
| ACCESSORIES | ||
| Stainless steel |
Mesh wire baskets, buckets (pails), and round test tube racks
|
|
| Factory or field installed |
Floating (load) sensor, digital printer, and data logger
|
|
| POWER | ||
| Source |
120V, 50/60 Hz (220V/240V available)
|
|
| Consumption |
2000 watts (20000VA)
|
|
| SHIPPING WEIGHT |
180 lb (82 kg)
|
|
Retrofittable accessories (Any combination possible) :
A : Forced cooling unit
F : Floating sensor
P : Digital printer
W : Automatic water supply
Z : All combined(A+F+P+W)
