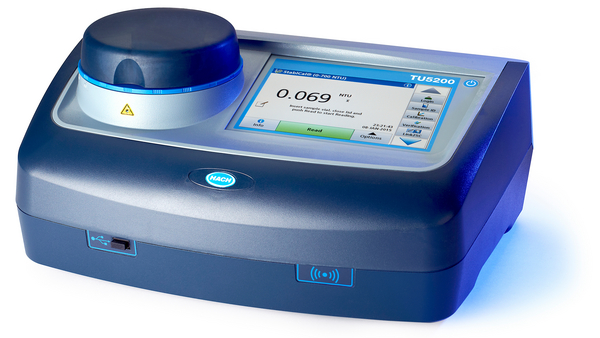

HACH, TU5200 Benchtop Laser Turbidimeter With System Check EPA Version
Prod #LPV442.99.01012
TU5200 Benchtop Laser Turbidimeter memberikan presisi dan akuratan yang tinggi, dan dengan sensitivitas yang tinggi sehingga meminimalisir variabel pengujian pengujian. U5200 Benchtop Laser Turbidimeter dapat menGhilangkan nilai ketidakpastian karena Menggunakan 360º x 90º Detection Technology.. TU5200 Benchtop Laser Turbidimeter mengurangi waktu yang dibutuhkan untuk analisa kekeruhan dengan hasil akurat dan konsisten di laboratorium.
Product Overview
| Accuracy: | ±2 % of reading plus 0.01 NTU from 0 to 40 NTU; ±10 % of reading from 40 to 1000 NTU based on Formazin primary standard (at 25 °C) |
| Calibration Method: | For Formazin and Stablcal: 20 NTU from 0 to 40 NTU; at 20 FNU and 600 NTU for full range Custom calibration for up to 6-point calibrations Degrees 0 - 100 mg/L SDVB 0 - 1000 NTU |
| Certifications: | CE compliant US FDA accession number: 1420493-000 EPA version, 1420492-000 ISO version Complies with IEC/EN 60825-1 and to 21 CFR 1040.10 in accordance with Laser Notice No. 50) Australian ACMA Marking |
| Communication: | Link2sc |
| Dimensions (H x W x D): | 195 mm x 409 mm x 278 mm |
| Display: | 7" WVGA (800 x 480) color TFT-LCD with touch screen |
| Enclosure Construction: | PC/ABS Blend Plastic |
| Light Source: | Class 2 laser product, with embedded 650 nm (EPA 0.43 mW) or Class 1 laser product, with embedded 850 nm (ISO), max. 0.55 mW (complies with IEC/EN 60825-1 and to 21 CFR 1040.10 in accordance with Laser Notice No. 50) |
| Operating Humidity: | 80% at 30 °C (non condensing) |
| Operating Temperature Range: | 10 to 40 °C (50 to 104 °F) |
| Power Requirements (Hz): | 50/60 Hz |
| Power Requirements (Voltage): | 100 - 240 VAC |
| Range: | EPA: 0 to 700 NTU / FNU / TE/F / FTU 0 to 100 mg/L 0 to 175 EBC ISO: 0 to 1000 NTU / FNU / TE/F / FTU 0 to 100 mg/L 0 to 250 EBC |
| Regulatory: | EPA |
| Repeatability: | <40 NTU: Better than 1% of reading or ±0.002 NTU on Formazin at 25 °C (77 °F), whichever is greater >40 NTU: Better than 3.5% of reading on Formazin at 25 °C (77 °F) |
| Resolution: | 0.0001 NTU / FNU / TE/F / FTU / EBC / mg/L |
| Response Time: | Signal averaging off: 7 seconds Signal averaging on: 10 seconds (when averaging time is 5 seconds) |
| Sample Temperature: | 4 to 70 °C (39 to 158 °F) |
| Storage Conditions: | -30 to 60 °C (-22 to 140 °F) |
| Stray Light: | <10 mNTU |
| Units: | NTU, FNU, TE/F, FTU, EBC; mg/L if calibrated with Degrees calibration curve |
| Weight: | 5.29 lbs. (2.4 kg) |
