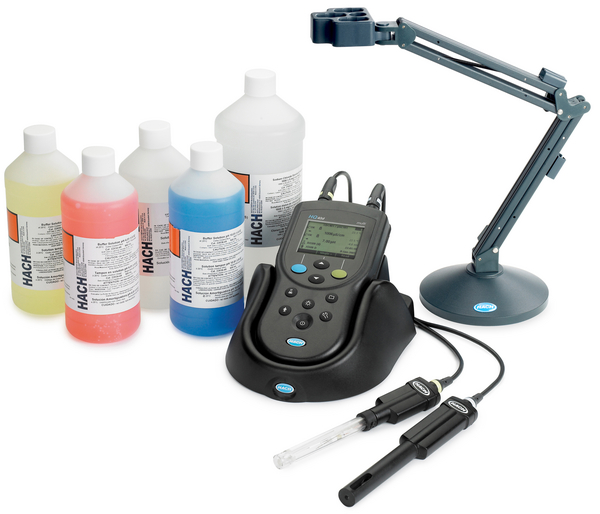

HACH, KTO: ADVANCE PH/COND, HQ40D w/1M PROBE

Prod #8505800
Live Chat Request Quote

HQ40d merupakan alat multiparameter portable yang mampu mengukur pH, conductivity, salinity, resisitivity, TDS, Dissolved Oxygen (DO), Ion Selective Electrode (ISE) dan ORP. Terdiri atas 2 channel yang dapat dikoneksikan dengan probe sesuai kebutuhan.

Didesain untuk aplikasi pengukuran kualitas air terutama pada parameter pH dan Konduktivitas, kit 8505800 dapat memberikan kemudahan dalam analisa Anda. Beberapa keuntungan lainnya adalah data kalibrasi maupun data pengukuran dapat tersimpan secara otomatis pada Alat, deteksi probe secara otomatis dan mudah untuk digunakan. Penggunaan Baterai yang hemat dapat pada instrument ini menjadikan instrument ini sangat cocok untuk digunakan di lapangan.

Kit ini dilengkapi dengan probe PHC301 yang merupakan elektroda pH refillable dan CDC401 yang merupakan probe Konduktivitas. Elektroda pH Refillable dapat diandalkan untuk kebutuhan jangka panjang sedangkan probe modern CDC401 dapat memudahkan Anda dalam analisa daya hantar listrik, tds maupun salinitas pada sampel air limbah, air minum, dan berbagai aplikasi larutan berair.



Product Overview

Spesifikasi :

AC Power Adapter and USB/DC Adapter   :   Included

Automatic Buffer Recognition   :  Yes

Barometric Pressure Measurement    :   Automatic compensation of DO when using an LDO or LBOD probe
Calibration    :    Demal (1D/ 0.1D/ 0.01D);
Molar (0.1M/ 0.01M/0.001M);
NaCl (0.05%; 25µS/cm; 1000µS/cm; 18mS/cm);
Standard sea water;
User defined
Calibration Intervals/Alerts/Reminder:Off, Selectable from 2 hours to 7 days
Compliance Certifications:CE.WEEE
Conductivity measurement:Yes
Conductivity measurement: Temperature correction:None; Linear; NaCl Non-Linear Natural Water.
Conductivity Measurement Range:0.01 µS/cm - 200.0 mS/cm
Conductivity resolution:0.01 µS/cm - 0.1 mS/cm upon selected measuring range
Contents   :   No
Custom Calibration Standards   :  Yes
Data Export   :   Download via USB connection to PC or flash memory device. Automatically transfer entire data log or as readings are taken.
Data Memory  :   500 records/FIFO
Data Storage   :   Automatic, GLP ISO compliant reading data stored with calibration details.
Digital (intelligent) electrode inputs   :   2 channels
Display   :   Detailed mode/Large mode
Display Lock Function   :   Continuous / Auto-stabilization ("press to read") / At Interval
Display Type    :   240 x 160 pixel LCD with backlight illumination
DO Measurement Range     :   0.1 - 20.0 mg/L (ppm) 1 - 200% saturation
DO Resolution   :   0.1
DO sensor calibration    :    * 100% (water-saturated air (100%) calibration
* 100% with 0 (water-saturated air (100%) calibration with 0 point
* mg/L (calibration with a specified dissolved oxygen concentration (mg/L) solution)
* mg/L with 0 (calibration with a specified dissolved oxygen concentration (mg/L) solution with 0 point)
* Factory (calibration with the default LDO calibration)
GLP Features:Date     ;     Time; Sample ID; Operator ID
Inputs    :   2
Instrument    :   Portable
IP Rating     :   IP67
ISE Direct Measurement Range    :    Yes
ISE Electrode Calibration   :   2 - 5 points
Languages    :   English, French, German, Italian, Spanish, Danish, Dutch, Polish, Portuguese, Turkish, Swedish, Czech, Russian
Measurement Method    :    Probe specific programmed method settings
Model    :    HQ40D – Multi/2 Channels
mV Measurement at Stable Reading    :   Yes
mV Measurement Range    :    -1500 - 1500 mV
mV Resolution   :   0.1 mV
Needed Cable Length   :   1
Operating Error Messages   :   Clear text error messages displayed
Operating Humidity    :    90 % relative humidity (non-condensing)
Operating Interface    :   Soft Touch Keypad
Operating Temperature    :   0 - 60 °C (32 - 140 °F)
ORP Electrode Calibration   :   Predefined ORP standards (including Zobell's solution)
Parameter     :    pH/Oxydo Reduction Potential (ORP)
Conductivity/Total Dissolved Solid (TDS)/Salinity/Resistivity
Dissolved Oxygen (DO)
Biochemical Oxygen Demand (BOD)
Ion Selective Electrode (ISE)     :    Ammonia, Ammonium, Chloride, Fluoride, Nitrate, Sodium
Parameters  :pH
Conductivity

NA
PC Data Transfer Software:HQD Series Meter Data Transfer Utility
pH Buffer Sets    :   Color-coded: 4.01, 7.00, 10.01 pH;
IUPAC    :   1.679, 4.005, 7.000, 10.012, 12.45
DIN     :    1.09, 4.65, 9.23
User-defined custom buffer sets
pH Electrode calibration     :    1 - 3 Calibration points
Calibration summary data logged and displayed
pH Measurement Range      :    0 - 14 pH
pH Resolution:Selectable:
0.001/0.01/0.1 pH
Printer     :   Yes, Optional
Probes included    :    PHC30101, CDC40101
Probe Type    :    Intellical Standard Laboratory or Rugged Field
Region    :   US
Salinity Measurement Range    :    0 - 42 (ppt) (‰)
Salinity Resolution    :    0.01 (ppt) (‰)
Sensor A      :    PHC30101
Sensor B      :    CDC40101
Sensor C      :    NA
Sensors:Sensor A    :    PHC30101, CDC40101
Sensor B     :     CDC40101
Sensor C:
Simultaneous measurements     :    Yes, 2 channels
TDS Measurement Range    :    0.00 mg/L - 50.0 g/L NaCl
TDS Resolution     :     0.01 mg/L up - 0.1 g/L upon measuring range
Temperature Accuracy    :    ∓ 0.3 °C
Temperature Compensation     :    Automatic Temperature compensation for pH
 Automatic Temperature compensation for pH
Temperature Measurement    :   °C or °F
Temperature Resolution    :    0.1
Type of Measurement     :     QC Lab

Weight     :    335 g (0.75 lb) without batteries; 430 g (0.95 lb) with
