HACH, HQ440D General Purposes Water Laboratory pH and Conductivity/TDS Meter Package with Robust Plastic Body PHC201 Electrode and 4 Poles Graphite CDC401 C

Prod #8507570

Live Chat Request Quote

HQ440D Didesain untuk aplikasi pengukuran kualitas air dan sangat cocok digunakan pada laboratorium terutama pada parameter pH , dan conductivity

kit 8507570 dapat memberikan kemudahan dalam analisa Anda. Beberapa keuntungan lainnya adalah data kalibrasi maupun data pengukuran dapat tersimpan secara otomatis pada Alat, deteksi probe secara otomatis dan mudah untuk digunakan.

Kit ini dilengkapi dengan probe Intellical PHC201 dengan kabel 1 meter sangat cocok untuk mengukur pH dalam aplikasi kualitas air secara umum.

Intellical CDC401 dengan kabel 1 meter CDC401 adalah elektroda konduktivitas 4 kutub digital, grafit, ideal untuk mengukur konduktivitas listrik, salinitas, resistivitas, atau total padatan terlarut (TDS) dalam air limbah, air minum, atau aplikasi kualitas air umum

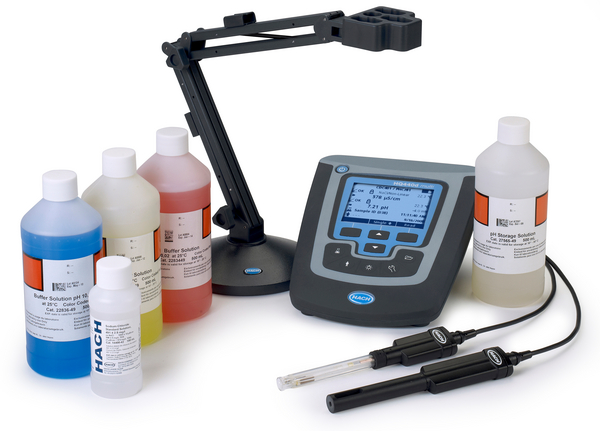

Kit ini terdiri dari : HQ440D Laboratory Multi Meter, Universal electrode Stand with electrode holder, PHC201 combined pH gel electrode with 1 m cable, CDC401 conductivity/TDS/salinity cell with 1 m cable, pH Buffer Kit 4,01/7,00/10,01 (500 mL), pH electrode storage solution (500 mL), NaCl conductivity standard (1000 µS/cm, 491 mg/L, 100 mL), 4 Alkaline 1,5V AA batteries, Power Supply Adapter, Power Cord, USB cable for data transfer, and Operating Documentation.

Product Overview

Spesifikasi :

Automatic Buffer Recognition:Yes

Barometric Pressure Measurement:Automatic compensation of DO when using an LDO or LBOD probe

Calibration:Demal (1D/ 0.1D/ 0.01D);
Molar (0.1M/ 0.01M/0.001M);
NaCl (0.05%; 25µS/cm; 1000µS/cm; 18mS/cm);
Standard sea water;
User defined

Calibration Intervals/Alerts/Reminder:Off, selectable from 2 hours to 7 days

Communication:Integrated USB type A (for USB 2.0 flash memory device, printer, keyboard) and Integrated USB type B (for PC)

Compliance Certifications:CE.WEEE

Conductivity measurement:Yes

Conductivity measurement: Temperature correction:None; Linear; NaCl Non-Linear Natural Water.

Conductivity Measurement Range:0.01 µS/cm - 200.0 mS/cm

Conductivity resolution:0.01 µS/cm - 0.1 mS/cm upon selected measuring range

Contents:Meter + Probe(s) + Lab. Accessories + Reagents

Custom Calibration Standards:Yes

Data Export:Download via USB connection to PC or flash memory device. Automatically transfer entire data log or as readings are taken.

Data Memory:500 records/FIFO

Data Storage:Automatic, GLP ISO compliant reading data stored with calibration details.

Dimensions:859 x 175 x 235 mm (3.38 x 6.88 x 9.25 in.)

Display:Detailed mode/Large mode

Display Type:440 x 160 pixel LCD with backlight illumination

DO Measurement Range:0.1 - 20.0 mg/L (ppm) 1 - 200% saturation

DO Resolution:0.1

DO sensor calibration:• 100% (water-saturated air (100%) calibration
• 100% with 0 (water-saturated air (100%) calibration with 0 point
• mg/L (calibration with a specified dissolved oxygen concentration (mg/L) solution)
• mg/L with 0 (calibration with a specified dissolved oxygen concentration (mg/L) solution with 0 point)
• Factory (calibration with the default LDO calibration)

Electrode Holder:NA

Electrode stand:Included

GLP Features:Date; Time; Sample ID; Operator ID

Instrument:Bench

IP Rating:IP54 (Resistant to spray of water; Dust-proof)

ISE Direct Measurement Range:Yes

ISE Electrode Calibration:2 - 5 points

Kit?:Yes

Languages:English, French, German, Italian, Spanish, Danish, Dutch, Polish, Portuguese, Turkish, Swedish, Czech, Russian

Lock Function:Continuous / Auto-stabilization ("press to read") / At Interval

Measurement Method:Probe specific programmed method settings

Model:HQ440D – Multi/2 Channels

mV Measurement at Stable Reading:Yes

mV Measurement Range:-1500 - 1500 mV

mV Resolution:0.1 mV

Needed Cable Length:1

Operating Error Messages:Clear text error messages displayed

Operating Humidity:90 % relative humidity (non-condensing)

Operating Interface:Soft Touch Keypad

Operating Temperature:0 - +60 °C (32 - 140 °F)

ORP Electrode Calibration:Predefined ORP standards (including Zobell's solution)

Parameter:pH/Oxydo Reduction Potential (ORP)
Conductivity/Total Dissolved Solid (TDS)/Salinity/Resistivity
Dissolved Oxygen (DO)
Biochemical Oxygen Demand (BOD)
Ion Selective Electrode (ISE): Ammonia, Ammonium, Chloride, Fluoride, Nitrate, Sodium

PC Data Transfer Software:HQd Series Meter Data Transfer Utility

pH Buffer Sets:Color-coded: 4.01, 7.00, 10.01 pH;
IUPAC: 1.679, 4.005, 7.000, 10.012, 12.45 pH
DIN: 1.09, 4.65, 9.23 pH
User-defined custom buffer sets

pH Electrode calibration:1 - 3 Calibration points
Calibration summary data logged and displayed

pH Measurement Range:0 - 14 pH

pH Resolution:Selectable:
0.001/0.01/0.1 pH

Printer:Yes, Optional

Probes included:PHC20101, CDC40101

Region:US

Resistivity Measurement:2.5 Ω.cm - 49 MΩ.cm

Resistivity Resolution:0.1

Salinity Measurement Range:0 - 42 (ppt) (‰)

Salinity Resolution:0.01 (ppt) (‰)

Sensors:Sensor A: PHC20101
Sensor B: CDC40101
Sensor C: NA

Simultaneous measurements:Yes

TDS Measurement Range:0.00 mg/L - 50.0 g/L as NaCl

TDS Resolution:0.01 mg/L - 0.1 g/L upon measuring range.

Temperature Compensation:Automatic Temperature compensation for pH

Temperature Measurement:°C or °F

Temperature Range:-10°C - 110 °C

Temperature Resolution:0.1

Type of measurement:Lab Water Quality applications.

Warranty:3 years

Weight:750 g (1.65 lb) without batterie; 850 g (1.87 lb) with batteries
