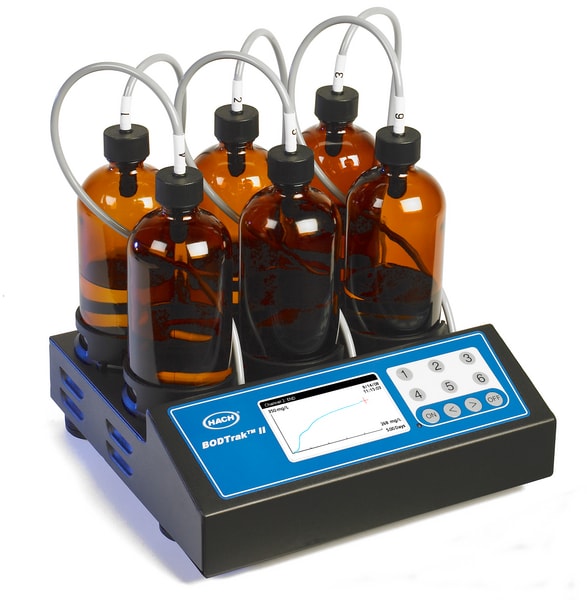

HACH, BODTrak II Respirometric BOD Apparatus
Prod #2952400
Simplify BOD analysis with the BODTrak™II Respirometric BOD Apparatus. Results comparable to the dilution method can be achieved in only two to three days. Use these results for process control or as a complement to the dilution method (not approved by USEPA for NPDES reporting purposes). The BODTrak II is a re-engineered version of the original Hach BODTrak. Improvements to the old system include greaseless bottle seals, a larger graphical display, improved stirring and temperature control, a smaller footprint, improved procedures with expanded options, an auto-switching power supply, and bottle fences to prevent tipping of bottles.
- Decrease total test time
- Faster than Dilution Method
- BOD results that are easy to monitor
- Standalone operation
- DO probes and titrations are eliminated
Product Overview
| BOD bottle | 473 mL/6 pcs |
| Capacity | Six 492 mL bottles |
| Dimensions Depth | 10.3 in |
| Dimensions Height | 9.8 cm (3.9 in.) |
| Dimensions Width | (11.4 in.) |
| Drift | < 3 mg/L BOD in 5 days |
| Footnote | *The BODTrak II method is not approved by the USEPA for NPDES reporting purposes. |
| Input Voltage | 110 - 240 V, 50/60 Hz |
| Instrumen | BOD Trak II Apparatus |
| Interface | RS232 |
| Measurement Method | Manometric |
| Output Voltage | 24V, UL CSA, and TUV approved |
| Range | 0 - 700 mg/L |
| Weight | 4 Kg |
