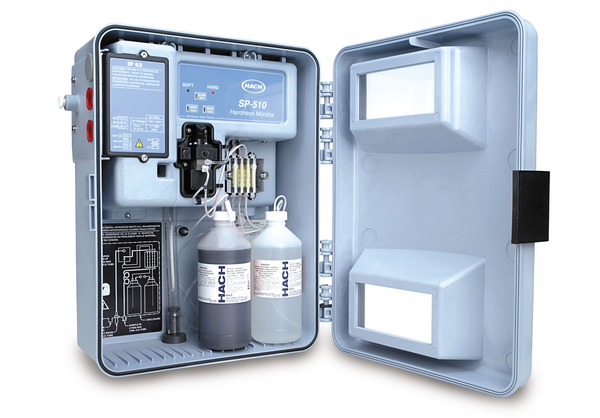

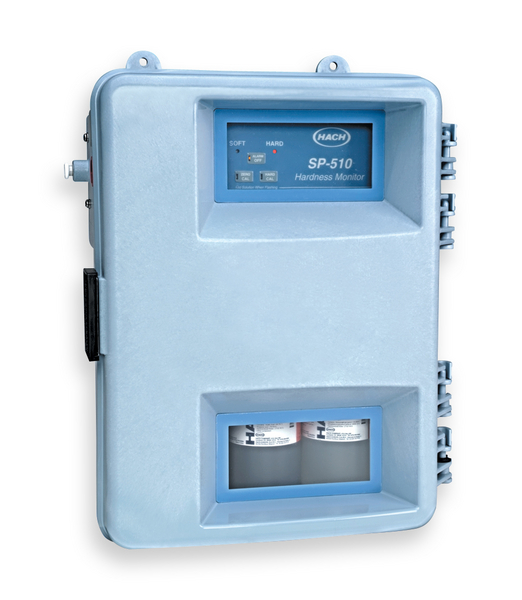

HACH ONLINE, SP510 Hardness Analyzer with Reagents (0.3 mg/L trip point)
Prod #5410003
Hach SP510 Hardness Monitor secara terus-menerus memonitor sistem air untuk memberikan alarm ketika total kekerasan melebihi batas yang ditentukan sebelumnya (delapan alarm tersedia). Dengan melakukan analisis setiap dua menit, monitor SP510 dapat membuat sistem otomatis atau semi-otomatis for water softener regeneration dalam berbagai aplikasi komersial atau industri
SP510 membuat sistem pelunakan air Anda lebih efisien dan lebih murah. Andal, sederhana, dan akurat- dengan kalibrasi otomatis. Pemantauan terus menerus secara "real time".
Product Overview
Specifications :
Accuracy : ±25% of set point value
Alarm : 2 consectutive cycles above set point activate alarm. 1 cycle below set point cancels alarm.
Alarm points : 0.3 mg/L of CaCO3 trip point
Certifications : NRTL certified to UL and CSA standards, and CE approved
Cycle Time : 2 average
Dimensions (H x W x D) : 419 mm x 318 mm x 178 mm
Fitting Type :
Inlet: ¼-in. OD tube quick-disconnect fitting
Outlet: ½-in. ID flexible hose
Outlet: ½-in. ID flexible hose
Light Source : LED with peak wavelenght of 610 nm
Maintenance Interval :
Standardise and replenish reagents every 2 months using EDTA or high-level sample
Replace pump tubes every 6 months
Replace pump tubes every 6 months
Material Enclosures : ABS plastic, large plastic windows to view alarm and reagents level
Measurement Method : Colorimetric
Operating Humidity : 5 - 95%, non-condensing
Operating Temperature Range : 5 - 40 °C
Output : 1 SPDT relay
Power Requirements (Hz) : 50/60 Hz
Power Requirements (Voltage) : 115/230 V AC
Reagent Consumption : 500 ml in each indicator and buffer every 2 months
Reagent Requirements : each of indicator and buffer. Replenish every two months for continuous operation.
Repeatability :
± 10 % of set point value in 0.3 - 2 mg/L ranges
± 4 % of set point value in 5 - 100 mg/L ranges
± 4 % of set point value in 5 - 100 mg/L ranges
Sample Flow Rate : 50 - 500 mL/min
Sample Inlet Connection : 1/4-in. OD tube quick-disconnect fitting
Sample Pressure :
0.07 - 0.34 bar (0.10 bar is optimum)
Sample conditioning : 0.10 - 5.17 bar
Sample conditioning : 0.10 - 5.17 bar
Service Interval :
Standardize and replenish reagents every 2 months using EDTA or high-level sample
Replace pump tubes every 6 months
Replace pump tubes every 6 months
Storage Conditions : -40 - 60 °C
Weight : 11.3 kg
