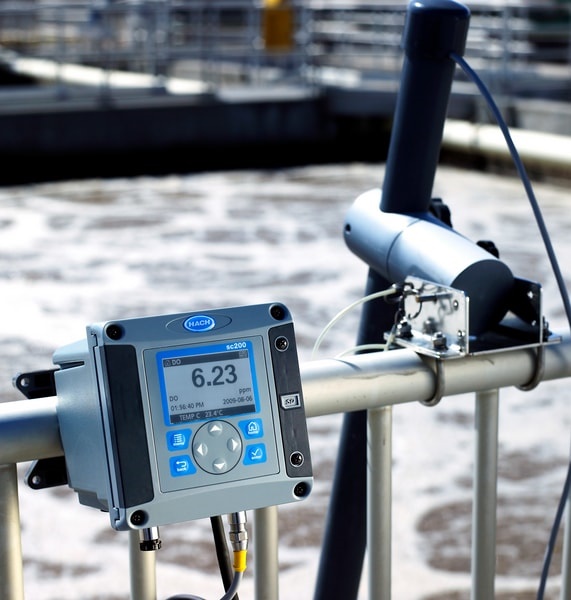

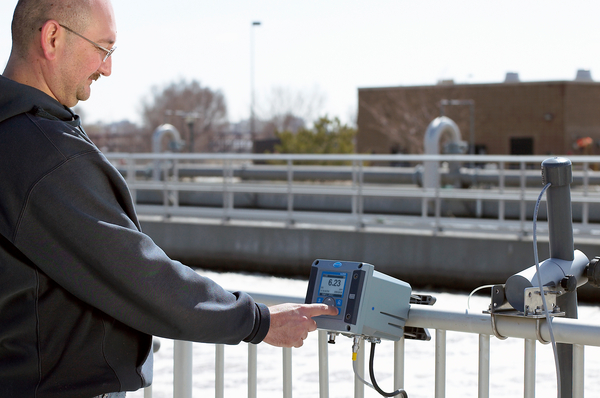

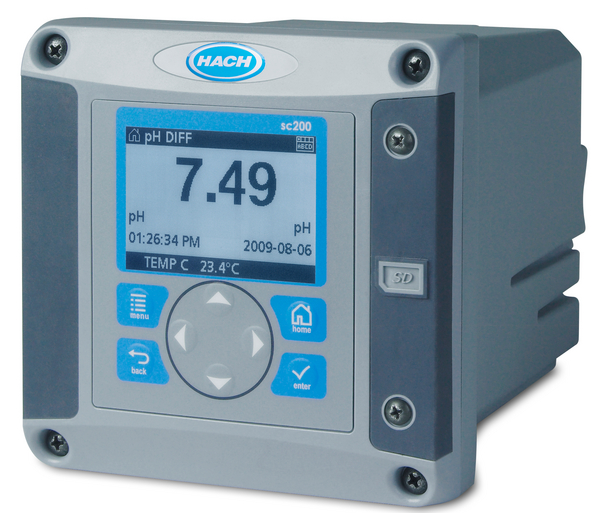

HACH ONLINE, sc200 Universal Controller: 100-240 V AC with two digital sensor inputs and two 4-20 mA outputs
SC200 universal Controller paling serbaguna. Dimana bisa dikoneksi dengan sensor digital dan analog baik single parameter atau kombinasi. SC200 menggantikan SC100 digital dan GLI53 controller analog dengan fitur-fitur canggih untuk mempermudah penggunaan. Controller SC200 dapat dikonfigurasi untuk pengoperasian dua digital sensor, dua sensor analog atau kombinasi satu sensor digital dan 1 sensor analog. SC200 dapat ditambahkan modul komunikasi untuk beberapa protokol seperti MODBUS RTU, Profibus DPV1, dan HART. - Memiliki Multifungsi yang maksimal - Mudah penggunaan - Hasil yang akurat - Satu controller dengan banyak pilihan modul komunikasi
Product Overview
Spesifikasi :
|
Analog Output Functional Mode
|
Linear, Logarithmic, Bi-linear, PID |
|
Analog Outputs |
Two (Five with optional expansion module) isolated current outputs, max 550 Ω. Optional 4 addition 4/20 insolated current outputs, max 550 Ω |
|
Communication |
MODBUS RS232/RS485, PROFIBUS DPV1, or HART 7.2 optional |
|
Communication Capabilities |
2x 4-20 mA Out |
|
Conduit Openings |
1/2 " NPT Conduit |
|
Dimensions (H x W x D) |
144 mm x 144 mm x 181 mm |
|
Display |
Graphic dot matrix LCD with LED backlighting, transreflective |
|
Display Resolution |
240 x 160 pixels |
|
Display Size |
1.9 x 2.7 |
|
Electrical Certifications |
EMC - Certified CE compliant for conducted and radiated emissions (EN 50081-2) and immunity (EN 61000-6-2), General purpose - UL through ETL, Class I, Div. 2 (Groups. A, B, C, and D) - CSA (pending) |
|
Enclosure Rating |
IP66 / NEMA 4X |
|
Manual Languages |
Bulgarian, Chinese (PRC), Croatian, Czech, Danish, Dutch, English, Estonian, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Lithuanian, Polish, Portuguese (Brazil), Portuguese (Portugal), Romanian, Russian, Slovak, Slovenian, Spanish, Swedish, Thai, Turkish |
|
Material Enclosures |
Polycarbonate |
|
Mounting Configurations |
Wall |
|
Operating Temperature Range |
-20 to 60 °C at 0 to 95% RH (non-condensing) |
|
Power Requirements (Hz) |
50 - 60 Hz |
|
Power Requirements (Voltage) |
100 - 240 VAC |
|
Relay: Operational Mode |
Primary or secondary measurement, calculated value (dual channel only) or timer |
|
Relay Functions |
Scheduler (timer), alarm, feeder control, event control, pulse width modulation, frequency control, and warning |
|
Relays |
Four electromechanical SPDT (Form C) contacts, 1200 W, 5 A |
|
Security LevelsDigital |
2 password-protected levels |
|
Sensor Input #1 |
Digital |
|
Sensor Input #2 |
Digital |
|
Storage Conditions |
-20 °C to 70 °C |
|
Warranty |
2 year |
|
Weight |
3.75 lbs. (1.70 kg) |
