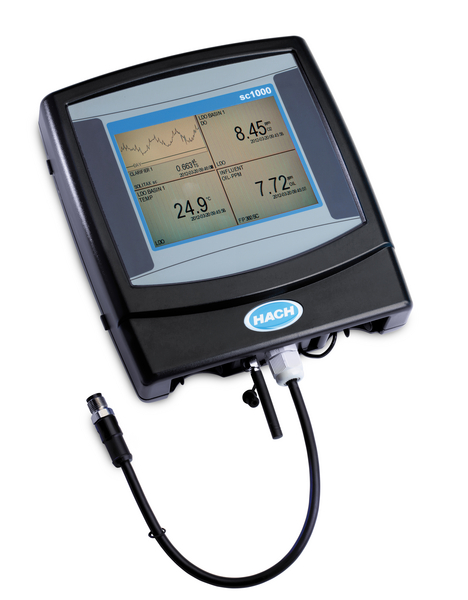

HACH ONLINE, sc1000 Multi-parameter Universal Controller Display Module with Modbus TCP/IP

Prod #LXV402.99.10002
Live Chat Request Quote

sc1000 Multiparameter Universal Controller adalah sistem modular pengendali state-of-the-art. Menggunakannya secara langsung dengan 8 sensor atau jaringan beberapa bersama-sama untuk mengakomodasi lebih banyak sensor dan parameter. Sc1000 terdiri dari Modul Tampilan dan satu atau lebih Probe Modul. Modul sc1000 Tampilan yang intuitif, dengan antarmuka yang mudah digunakan dan warna layar sentuh besar yang dapat digunakan untuk sejumlah parameter. Satu Modul Tampilan mengontrol satu atau beberapa Probe Modul terhubung oleh jaringan digital. Modul Tampilan sepenuhnya portabel, dan dapat terputus dan dipindahkan di mana saja dalam jaringan. Modul Tampilan juga tersedia dengan GSM / GPRS, ethernet dan kemampuan TCP / IP. Setiap sc1000 Probe Modul menyediakan daya ke sistem dan dapat menerima hingga 8 digital sensor. Probe Modul dapat jaringan bersama-sama untuk menampung hingga 32 digital sensor melekat pada jaringan yang sama. Plug-and-Play Operation, Mix and Match Digital Sensors, Flexible Input/Output Options, Expandable and Upgradeable, Advanced Communication Options.

Product Overview

SPESIFIKASI :

Alarm

Low alarm point, low alarm point deadband, high alarm point, high alarm point deadband, off delay, and on delay

Analog Output Functional Mode

PID, high/low phasing, setpoint, deadband, overfeed timer, off delay, on delay

Certifications

European Certifications:
CE per 73/23/EEC and 89/336/EEC
TUV-GS to EN 61010-1
EN 61326 Amd's 1 & 2

Communication

Modbus® (RS485): Advanced communications/networking with PLC or SCADA system directly from analyzer
Profibus® DP/V1 (certified)
GSM/GPRS Quad-band cellular module (FCC and IC approved, EU and US only)
Ethernet service port, RJ45, 10 MB/s

Dimensions (H x W x D)

315 mm x 242 mm x 150 mm

Display

QVGA, 320 x 240 pixels

Display Viewing Area

111.4 x 83.5 mm

Enclosure Rating

IP65

Inputs

Up to 12 analogue 0-20 mA, maximum impedance 500 Ohms per probe module. Additional inputs are available with additional probe modules.

Material

Plastic

Material Enclosures

ABS (display module) and metal (probe module) enclosure with corrosion resistant finish

Mounting Configurations

Surface, panel, and pipe (horizontal and vertical) with optional sun shield

Operating Temperature Range

-20 to 55 °C (-4 to 131 °F), 0 to 95% relative humidity, non-condensing

Output

Up to 12 analog 0/4-20 mA, maximum impedance 500 Ohms per probe module.

Additional analog outputs with additional probe modules. Optional digital communcations via Modbus® (RS485) and Profibus® DP/V1.
Up to 12 analog 0/4-20 mA, maximum impedance 500 Ohms per probe module.

Additional analog outputs with additional probe modules. Optional digital communcations via Modbus® (RS485) and Profibus® DP/V1.

Power Requirements (Hz)

50/60 Hz

Power Requirements (Voltage)

100 - 240 V AC, 24 V DC

Relays

Up to four SPDT, user-configurable contacts rated 100 to 230 VAC, 5 Amp resistive maximum per probe module. Additional relays are available with additional probe modules.

Storage Conditions

-20 to 70 °C (-4 to 158 °F), 0 to 95% relative humidity, non-condensing

Warranty

1 year

Weight

Approximately 14.33 lbs. (6.5 kg) (depending on configuration)
