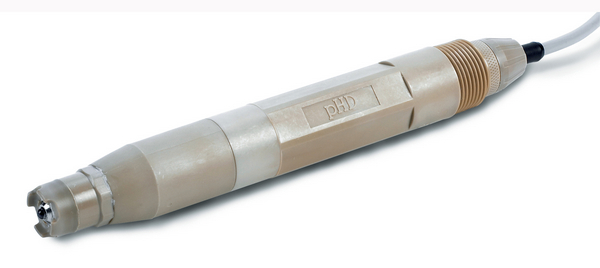

HACH ONLINE, Hach pHD sc Online Process pH Sensor - General Purpose Insertion Mount pH Sensor
Prod #DPD2P1
Product Overview
Specifications:
Accuracy : ± 0.02 pH
Body material : PEEK
Cable Connection : Digital
Cable Length : 10 m PUR (polyurethane) 4-conductor with one shield, rated to 105°C
Calibration Method : Two point automatic, one point automatic, two point manual, one point manual
Communication : Modbus
Drift : 0.03 pH per 24 hours, non-cumulative
Electrode Type : General Purpose
Flow Rate : 3 m (10 ft.) per second, maximum
Length : 271.3 mm
Mounting : Insertion
Operating Temperature Range :
Analog Sensor with Digital Gateway: -5 - 105 °C
Digital Sensor: -5 - 70 °C
pH Range : 0 - 14 pH
Pressure Range : Maximum 10.7 bar . 6.9 bar for Digital Sensor at 70°C, and 6.9 bar for Analog Sensor at 105°C.
Region : Global
Repeatability : ± 0.05 pH
Sensitivity : ± 0.01 pH
Sensor Cable : (integral) 4 10 m (33 ft.) polyurethane, 4-conductor cable with one shield, rated to 105°C (221°F)
Sensor Thread : 1" NPT
Storage Conditions : 4 - 70°C, 0-95% relative humidity (non-condensing)
Temperature Accuracy : ± 0.5 °C
Temperature Compensation :
Automatic with NTC 300 Ω thermistor, or manually fixed at a user-entered temperature,
additional selectable temperature correction factors (ammonia, morpholine, or user-defined pH/°C linear slope) available for pure water automatic compensation 0.0 - 50 °C
additional selectable temperature correction factors (ammonia, morpholine, or user-defined pH/°C linear slope) available for pure water automatic compensation 0.0 - 50 °C
Temperature Sensor : NTC 300 Ω thermistor for automatic temperature compensation and analyzer temperature readout
Transmission Distance : 1000 m (3280 ft.), maximum when used with a termination box.
100 m (328 ft.), maximum
Weight : 0.316 kg
