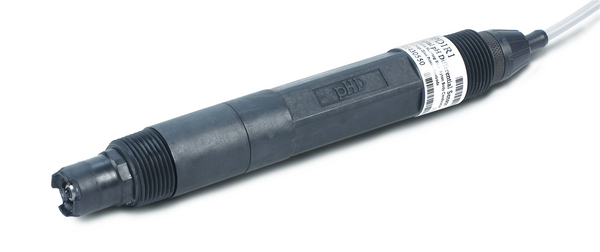

HACH ONLINE, Hach pHD Online Process pH Sensor - pH Sensor for Clean Water
Prod #PD1R1
Pilihan cerdas untuk pengukuran pH secara online dengan hasil yang akurat dan terpercaya. pH Sensor Online untuk air bersih. pHD Technology, Glass pH Electrode, Ryton Housing, Convertible Mount, 4.5m Cable. - Pengukuran pH dengan Kinerja pH Sensor yang luar biasa dengan Teknik Differential Electrode PhD. - Pemeliharaan yang mudah dengan Double Junction Salt Bridge. - Perpanjangan life time dengan mengganti Salt Bridge/Protector. - Keandalan dengan Built-in Encapsulated Preamp. - Teknologi Dipatenkan.
Product Overview
Accuracy: ± 0.02 pH
Cable Connection: Analog
Cable Length: 4.5 m 5-conductor (plus two isolated shields) cable with XLPE (cross-linked polyethylene) jacket; rated to 302 ºF (150 ºC)
Calibration Method: Two point automatic, one point automatic, two point manual, one point manual.
Communication: MODBUS
Diameter: 34.9 mm
Drift: 0.03 pH per 24 hours, non-cumulative
Electrode Type: General Purpose
Flow: max. 3 m/s
Length: 196.3 mm
Material: Ground Electrode: Titanium
Mounting: Convertible
Operating Temperature Range: -5 to 95 °C
Pressure Range: max. 10.7 bar Sensor only (pressure range of mounting hardware to be checked separately)
Range: -2.0 to 14.0 pH
Repeatability: ± 0.05 pH
Sensor Thread: 1 " NPT at both ends
