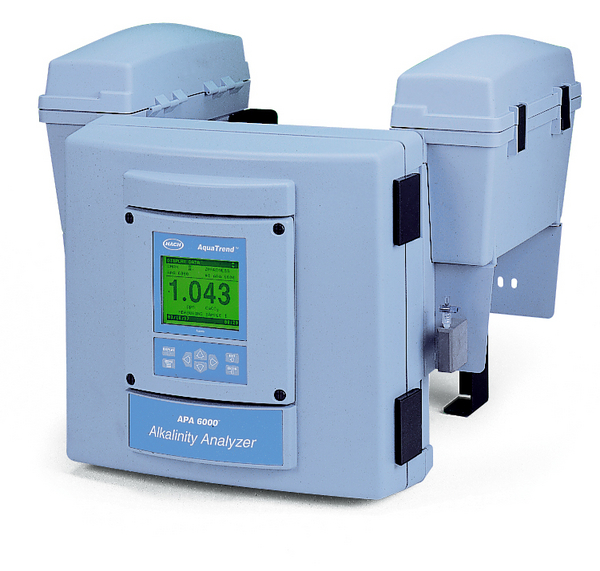

HACH ONLINE, APA6000 Alkalinity Analyzer
APA6000 Alkalinity Analyzer. Handal, Akurasi yangTinggi, Pengukuran Alkalinitas yang Kontinu. - Kemampuan auto kalibrasi - Rendah konsumsi - Perlindungan tetap, cepat dan waktu respon yang akurat - Akurasi penentuan alkalinitas 500 mg / L sebagai CaCO3 - otomatis 2 Stream Analysis
Product Overview
Spesifikasi :
|
Accuracy |
Better than ± 5 % of reading or ± 1 mg/L whichever is greater |
|
Analog Outputs |
Two 4-20 mA outputs suitable for recorders or PID control. Output span programmable over any portion of the 1 to 500 mg/L range (130 Vac isolation from earth ground) |
|
Certifications |
NRTL certified to UL and CSA standards and CE approved |
|
Cycle Time |
8 minutes |
|
Data Communications Distance |
Maximum node-to-node distance is 400 m (1312'). Maximum total wire length is 500 m (1640') |
|
Depth |
(21") |
|
Dimensions (H x W x D) |
522 mm x 627 mm x 526 mm |
|
Drain |
Gravity, air break or vent recommended |
|
Drain Fitting |
1/4" OD NPT barbed hose fitting |
|
Mounting |
Wall, bench and panel |
|
Parameter |
Alkalinity |
|
Power Requirements (Hz) |
50/60 Hz |
|
Power Requirements (Voltage) |
90 - 240 V AC |
|
Range |
1 to 1000 mg/L total alkalinity as CaCO3 |
|
Repeatability |
Better than 3 % of reading or ± 0.6 mg/L, whichever is greater |
|
Response Time |
Less than 10 minutes for 90% response to setup change at instrument sample fitting |
|
Sample Pressure |
0.03 |
|
Sample Temperature |
5 to 50 °C |
|
Weight |
56.22 lbs. (25.5 kg) |
