Accuracy

5 % of measured value +0.2 mg/l (with standard solutions) NH₄–N and NO₃-N

Cable Length

10 m / 32.8 fixed cable at sensor

Cable Length 2

fixed cable at sensor, available up to 100 m total length

Calibration Method

Factory calibrated sensor cartridge (CARTRICAL), 1 and 2 point matrix correction

Controller Compatibility

sc 200, sc 1000

Data Transfer

current output, relays and bus communication via sc controller

Diameter

84.5 mm

Flow

< 4 m/s max.

Installation Angle

45 ° ± 15 ° (vertical in flow direction)

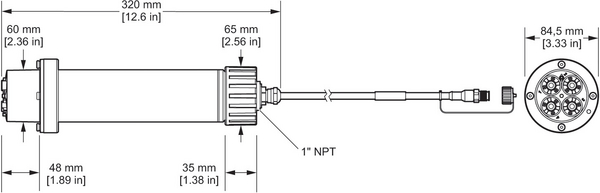

Length

320 mm

Lower Limit of Detection (LOD)

0.2 mg/L NH₄–N and NO₃-N

Material

Cartridge: Stainless steel (1.4571), PVC, POM, ABS, NBR

Measurement Method

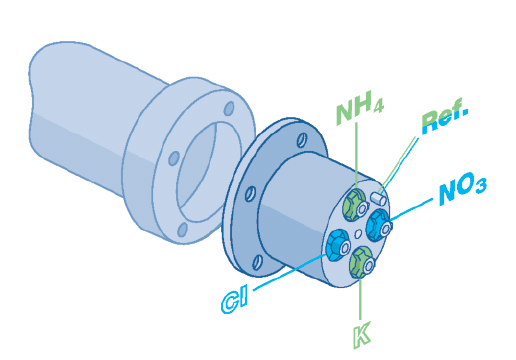

Potentiometric ion-selective electrodes for ammonium, potassium, nitrate and chloride, reference system and temperature sensor

Measurement Range

± 5 % + 0.2 mg/L (with standard solution) NH₄-N and NO₃-N

Measurement Range 2

0 to 1000 mg/L NO₃-N

Measuring Interval

Continuous

Measuring Principle

Ion-selective electrodes for ammonium and potassium, pHD reference electrode and temperature sensor

Measuring range

0 to 1000 mg/L Cl^-
0 to 1000 mg/L K⁺

Operating Temperature Range

-20 to 45 °C (-4 to 113 °F)

Parameter

NH₄-N and NO₃-N

pH Range

5 to 9 pH

Pressure Range

air
to

Process Connection

1 inch thread

Protection Class

IP68

Range

0 to 1000 mg/L NH₄-N and NO₃-N

Repeatability

± 5 % (with standard solution) NH₄-N and NO₃-N

Reproducibility

± 5 % + 0.5 of the measured value + 0.2 mg/L1 NH₄-N or NO₃-N

Response Time

< 3 min

Sample Pressure

0.3 bar max.

Sample Temperature

2 to 40 °C (35 to 104 °F)

Sensor Cartridge

Automatic import of factory calibration data, typical lifetime 6 months

Sensor Immersion Depth

0.3 to 3.0 m
max. 0.3 bar (4.4 psi) pressure

Storage Conditions

5 to 40 °C (41 to 104 °F) sensor cartridge

Weight

5247 lbs. (2380 g)
