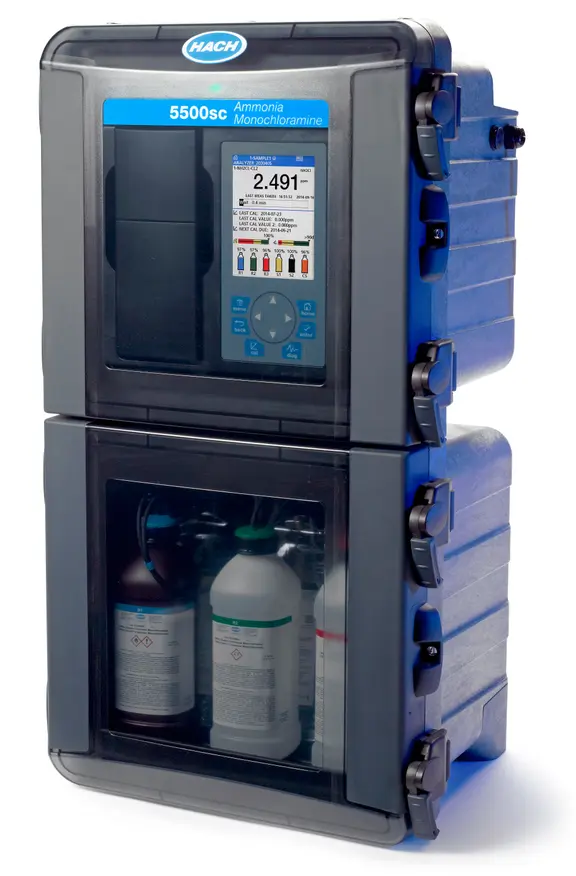

HACH ONLINE, 5500sc Ammonia Monochloramine Analyzer, 1 Channel
Prod #5500.AMC.1.KTO
Product Overview
Specifications :
| Accuracy | ± 5 % or 0.01 ppm (as N) for sample temperature 5 - 40 °C (41 - 104 °F); ±10% or 0.02 ppm for sample temperature 40 - 50 °C (104 - 122 °F), whichever is greater |
| Alarm | Four; not powered SPDT relays, each rated at 5A resistive, 240 VAC maximum |
| Certifications | CE (EN 61326-1: 2006; EN 61010-1: 2010; EN 60529: 1991, +A1:2000 cETLus (UL 61010-1:2012; NEMA 250:2003; CSA C22.2 No 61010-1:2012) Australian RCM Marking |
| Communication | Modbus RS485, Profibus DP (available with external controller), 4-20mA Output |
| Cycle Time | 4.5 min minutes |
| Enclosure Rating | IP56 / NEMA 4X |
| External Filter | No |
| Grab Sample | Grab Sample In and Grab Sample Out capability |
| Inlet | 6mm OD push-to-connect fitting for plastic tubing |
| Light Source | Class 1M LED (light emitting diode) with a peak wavelength of 650 nm |
| Lower Limit of Detection (LOD) | 0.01 ppm (as N) |
| Material | Polycarbonate (PC)/ABS case, PC Door, PC hinges and latches, 316 Stainless Steel hardware |
| Measuring Interval | 4.5 minutes |
| Mounting | Wall, panel, or table |
| Number of Channels | 1 |
| Number of sample streams | 1 or 2 in programmable sequence |
| Operating Humidity | 5 - 95 % non-condensing |
| Operating Temperature Range | 5 - 45 °C (41 - 113 °F) |
| Options | Standard |
| Outlet | 11mm (7/16 in.) ID slip-on fitting |
| Outputs | Four 0/4-20 mA Outputs, load impedance 600 ohm maximum |
| Parameter | Total Ammonia, Monochloramine, and Free Ammonia |
| Pollution Degree | 2/II |
| Power Requirements (Hz) | 50 - 60 Hz |
| Power Requirements (Voltage) | 100 - 240 VAC |
| Range | 0.01 - 2 ppm (as N), 0.1 - 10.0 mg/L (as Cl?) |
| Reagent Consumption | 1L of reagents every month with 5 minute cycle time |
| Repeatability | 3 % or 0.01 ppm (as N), whichever is greater |
| Response Time | Within 5 minutes |
| Sample Flow Rate | 100 - 1000 mL/min |
| Sample Pressure | 2.5 - 87 psi (0.17 - 6.8 bar) |
| Sample Temperature | 5 - 50 °C (41 - 122 °F) |
| Storage Conditions | -20 - 60 °C (-4 - 140 °F) |
| Warranty | 12 months |
| Weight | 20.5 kg (45.19 lb) without reagents and standards, 30 kg (66.14 lb) with reagents, standards and cleaning solution |
| What's included? | Hach 5500sc Ammonia Monchloramine Analyser, 1 channel, with installation kit and user manuals, reagents and standards for one month use |
