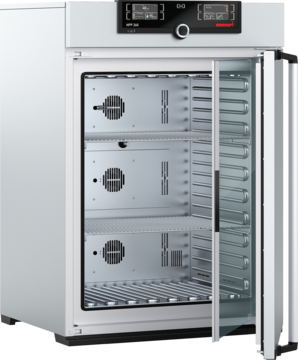

MEMMERT, HPP260 Constant Climate Chamber 256L
Apakah Anda mencari stability chamber untuk simulasi lingkungan, material testing dan uji stabilitas yang tidak bising, ruang penyimpanan yang besar, ramah lingkungan dan juga sangat hemat energi?Pilihlah teknologi peltier dari memmert , HPP Constant Climate Chamber yang stabil dan tepat dalam jangka waktu tes yang lama. Temperatur kontrol nya antara 0oC s.d 70oC dengan kelembaban antara 10% s.d 90% ; Hanya dengan 1 model: Twin Display; Double door.
Baca Juga : MEMMERT Climate Chamber
Product Overview
Properties Control of standard components
|
Temperature |
2 Pt100 sensors Class A in 4-wire-circuit, mutually monitoring and taking over the performance at the same temperature value |
|---|---|
|
Humidity |
humidity supply with distilled water from external tank by self-priming pump |
|
Humidity |
humidity supply with distilled water from external tank by self-priming pump |
|
Humidity |
humidification by hot steam generator |
|
Humidity |
active humidifying and de-humidifying adjustable from 10 - 90 % rh with digital display of relative humidity - resolution of display 0.1 %, setting accuracy 0.5 % |
|
Humidity |
dehumidification by cold trap using the Peltier technology |
|
ControlCOCKPIT |
adaptive multifunctional digital PID-microprocessor controller with 2 high-definition TFT-colour displays |
|
Timer |
Digital backwards counter with target time setting, adjustable from 1 minute to 99 days |
Temperature
|
without light: from 0°C to +70°C |
|
|
with light: from +15°C to +40°C |
|
|
resolution of display for setpoint and actual temperature values |
0.1°C |
|---|---|
Control technology
|
Function HeatBALANCE |
adapting the distribution of the heating performance of the upper and lower heating circuit from -50 % to +50 % |
|---|---|
|
Function SetpointWAIT |
the process time does not start until the set temperature is reached |
|
Language setting |
German/English/Spanish/French |
|
Calibration |
three freely selectable temperature values, 2-point calibration for humidity: 20 and 90 % rh |
|
adjustable parameters |
temperature (Celsius or Fahrenheit), relative humidity, programme time, time zones, summertime/wintertime |
Ventilation
|
forced ventilation by Peltier fan |
|---|
Communication
|
Documentation |
programme stored in case of power failure |
|---|---|
|
Programming |
AtmoCONTROL software on a USB stick for programming, managing and transferring programmes via Ethernet interface or USB port |
Safety
|
Temperature control |
over- and undertemperature monitor TWW, protection class 3.3 or adjustable temperature limiter TWB, protection class 2, selectable on display |
|---|---|
|
AutoSAFETY |
additionally integrated over- and undertemperature protection "ASF", automatically following the setpoint value at a preset tolerance range, alarm in case of over- or undertemperature, heating function is switched off in case of overtemperature, cooling function in case of undertemperature |
|
Autodiagnostic system |
integral fault diagnostics for temperature and humidity control |
|
Alarm |
visual and acoustic |
Heating concept
|
Heating and cooling performance distribution by individual control of the Peltier elements in the upper and lower row |
|
|---|---|
|
energy-saving Peltier heating-/cooling system integrated in the rear (heat pump principle) |
Standard equipment
|
Door |
fully insulated stainless steel door with 2-point locking (compression door lock) |
|---|---|
|
Door |
inner glass door |
|
Housing |
rear zinc-plated steel |
|
Internals |
2 stainless steel grids |
Stainless steel interior
|
Max. loading of chamber: 200 kg |
|
|
Dimensions W x H x D in mm |
w(A) x h(B) x d(C): 640 x 800 x 500 mm |
|---|---|
|
Volume 256 l |
|
Textured stainless steel casing
|
w(D) x h(E) x d(F): 824 x 1183 x 774 mm |
Electrical data
|
Voltage Electrical load |
230 V, 50/60 Hz |
|---|---|
|
Voltage Electrical load |
115 V, 50/60 Hz |
Packing/shipping data
|
the appliances must be transported upright |
|
|---|---|
|
Customs tariff number |
8419 8998 |
|
Country of origin |
Federal Republic of Germany |
|
WEEE-Reg.-No. |
DE 66812464 |
|
Dimensions approx incl. carton B x H x T: 930 x 1380 x 930 mm |
|
|
Net weight approx. 122 kg |
|
|
Gross weight carton approx. 173 kg |
|
